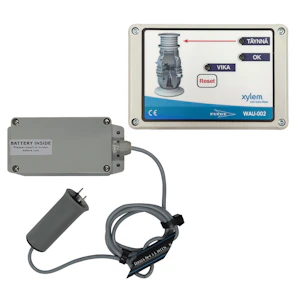

WIRELESS ALARM UNIT WAU-002

WAU-002 is a surface monitor and wireless alarm transmitter with a range of up to 100 m. WAU-002 consists of an indoor unit and an outdoor unit installed inside the pump tank or well. Thanks to the wireless connection, the indoor unit can be installed almost anywhere indoors or outdoors. WAU-002 requires a 230 V voltage, for example from a socket, to which the indoor unit is connected. Technical specifications for the transmitter:

• dimensions: 65 x 115 x 40 mm
• housing: IP65 polycarbonate
• transmission frequency: 433.7 MHz LoRa
• range: 100 m
• battery: 3.6V AA lithium
• power consumption: 2 ?A

Technical specifications for the sensor:

• operating principle: conductivity-based
• cable: 2 x 0.5 mm² / 1.5 m

Technical specifications for the receiver:

• dimensions: 80 x 120 x 38 mm
• relays: N.O./N.C. Max 24V, 3A DC
• transformer: 230V AC / 12V DC 450 mA

This product description is an automated translation of the original Finnish description.
