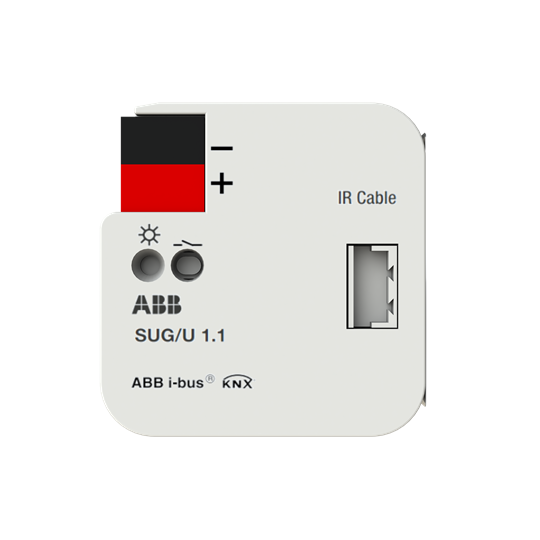

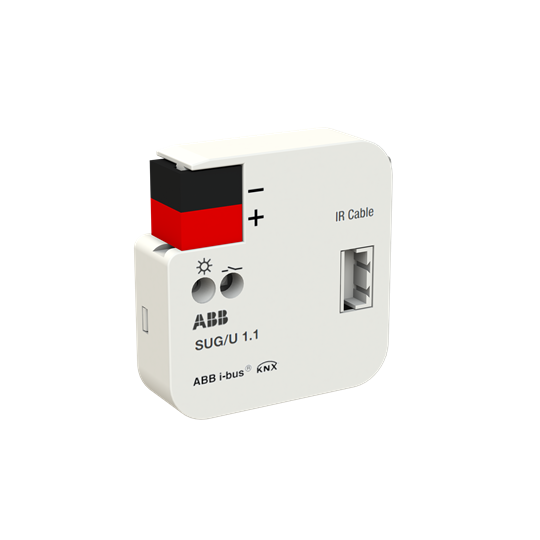

GATEWAY KNX IR-TRANSMITTER SPLIT UNIT
Product code
2814545
The KNX/IR converter enables control of heat pumps via the KNX system. The KNX/IR converter must be installed in close proximity to the heat pump. The transmitter of the KNX/IR converter is attached to the heat pump's receiver with double-sided tape. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)System interface/media gateway for bus system (EC001099)
Bus system KNXyes
Bus system KNX-RF (Radio Frequency)no
Bus system KNX Secureno
Bus system KNX Secure-RF (Radio Frequency)no
Bus system radio frequencyno
Bus system LONno
Bus system Powernetno
Other bus systemsNone
Radio frequency bidirectionalno
ModelIR-interface
Mounting methodFlush-mounted
Number of channels1
Max. number of devices per channel1
Demounting protectionno
With LED indicationyes
Product codes
SAPCPQ515
STK2814545
PLC2814545
GTIN/EAN4016779997362
Manufacturer part numberSUG/U1.1
Vendor material number2814545
Basic information
Package measurements (L x W x H)23 x 92 x 65 mm
Package volume0.138 l
Package weight0.05 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121801
BrandABB
VendorABB OY ASENNUSTUOTTEET
