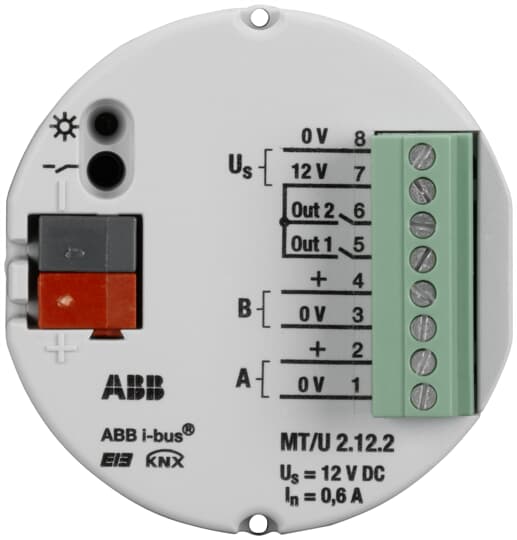

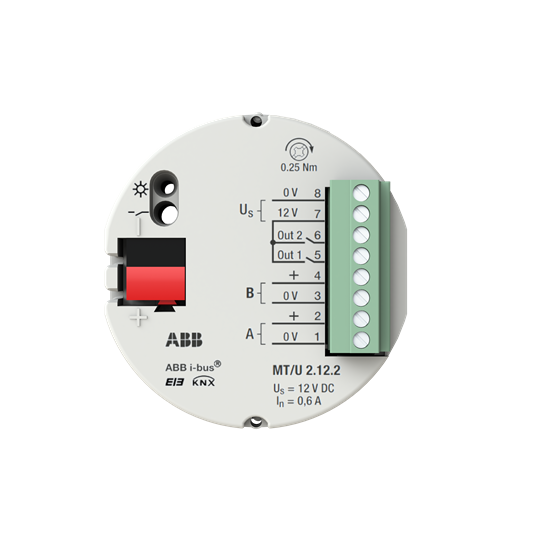

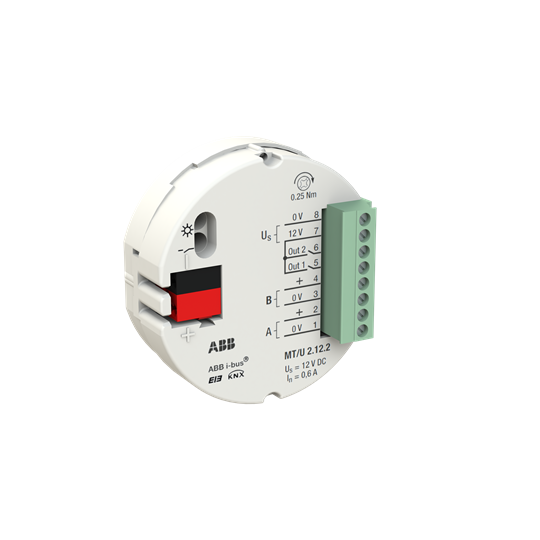

INPUT MODULE KNX SECURITY TERMINAL 2-FOLD
Product code
2815321
SÄKERHETSTERMINAL 2-KANALER MT
12 VDC, 2-loop monitoring device, termination resistor in loop of 2.7 k?. Status information displayed via LED per loop. Connects to the bus via a bus connector. External 12 VDC power supply. Recessed mounting. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Sensor control for bus system (EC001100)
Bus system KNXyes
Bus system KNX-RF (Radio Frequency)no
Bus system radio frequencyno
Bus system LONno
Bus system Powernetno
Other bus systemsNone
ModelSignalling group terminal
Mounting methodFlush-mounted
Number of inputs2
Degree of protection (IP)IP20
Product codes
SAPALT739
STK2815321
PLC2815321
GTIN/EAN4016779711760
Manufacturer part numberMT/U2.12.2
Vendor material number2815321
Basic information
Package measurements (L x W x H)77 x 92 x 65 mm
Package volume0.46 l
Package weight0.05 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121524
BrandABB
VendorABB OY ASENNUSTUOTTEET
