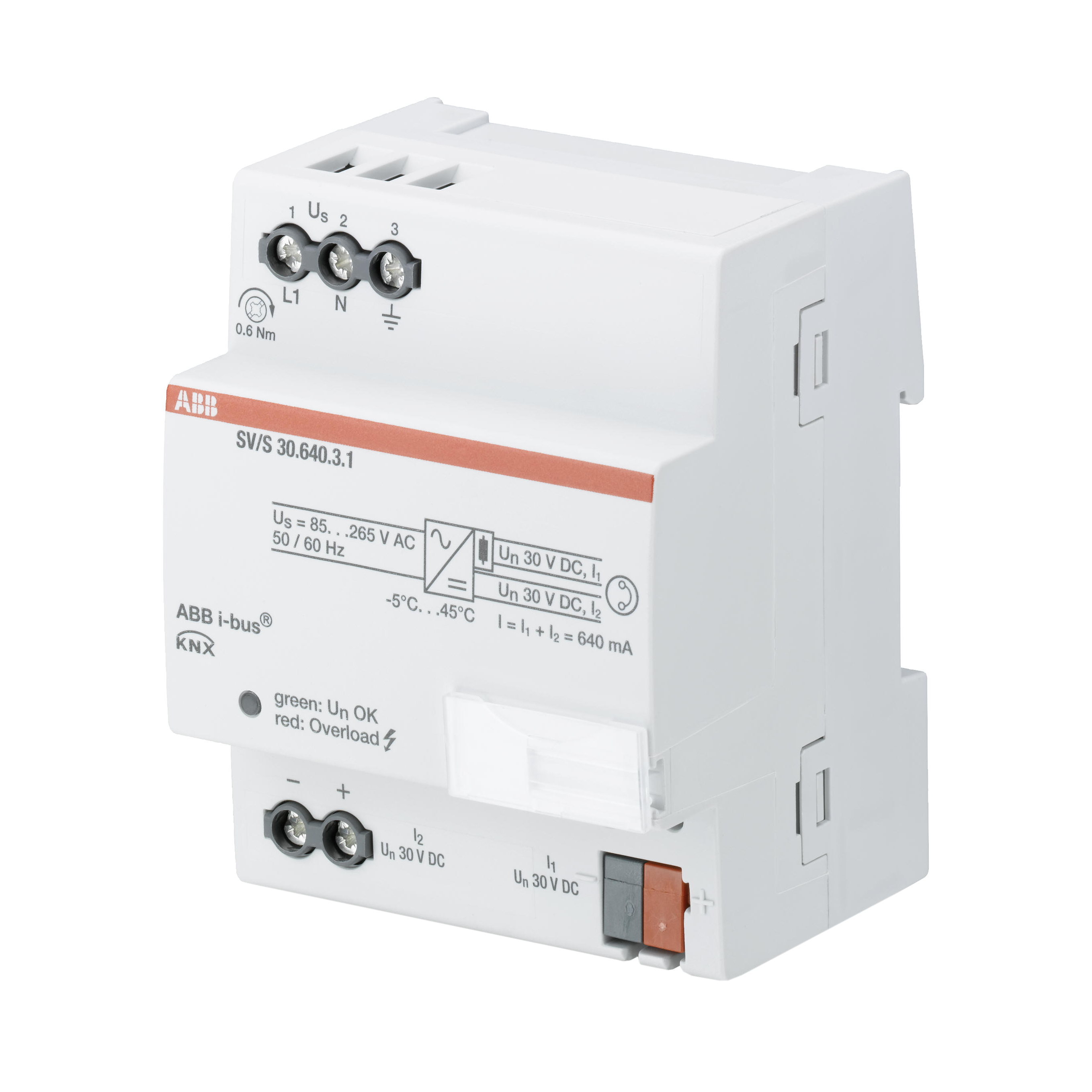

POWER SUPPLY KNX 640 MA, STANDARD
Product code
2815463
SPÄNNINGSAGG STANDARD 640mA
KNX system power supply, 30 VDC SELV 640 mA.
Requirement for 4 modules on DIN rail. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power supply for bus system (EC000675)
Bus system KNXyes
Bus system KNX-RF (Radio Frequency)no
Bus system radio frequencyno
Bus system LONno
Bus system Powernetno
Other bus systemsNone
Mounting methodDRA (DIN-rail adaptor)
Width in number of modular spacings4
With LED indicationyes
Bus voltage stockableno
Number of integrated choke coils1
Number of lines to feed2
Max. output current640 mA
Secondary voltage30 V
Product codes
SAPASO205
STK2815463
PLC2815463
GTIN/EAN4016779906210
Manufacturer part numberSV/S30.640.3.1
Vendor material number2815463
Basic information
Package measurements (L x W x H)76 x 93 x 67 mm
Package volume0.474 l
Package weight0.25 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121004
BrandABB
VendorABB OY ASENNUSTUOTTEET
