OUTDOOR LUMINAIRE IP44 E27 GLC BK POLE
Product code
4116400

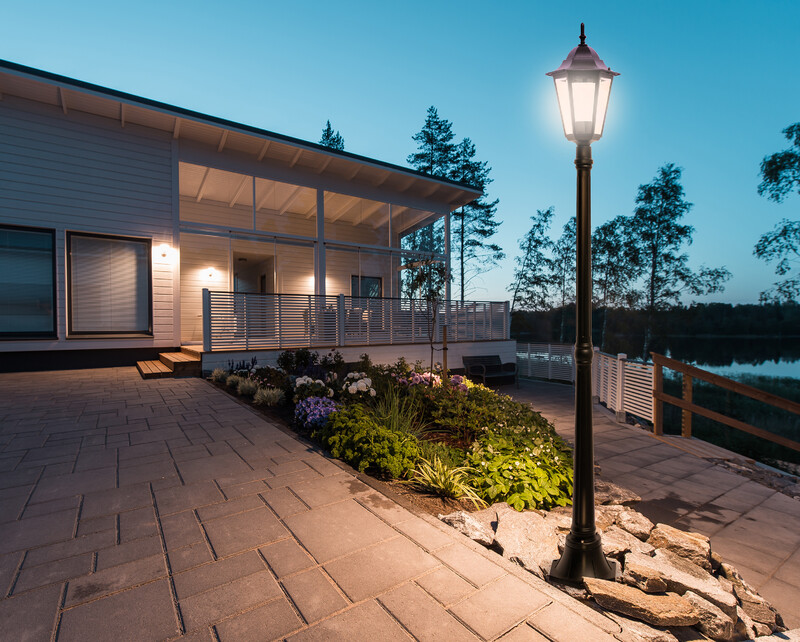

Kartano PoleThe Kartano Pole series lamps create the atmosphere of bygone eras. Classic design and materials suited to the spirit of the past—porcelain lamp holders and faceted glass—stand the test of time. Choose a complete set that matches the character of your house and garden, and complement the lighting with Kartano series wall lamps.
- Aluminum body, faceted glass, porcelain lamp holder.
- White and black.
- Termination: 3 x 2.5 mm2.
- Installation into a buried concrete base 60 mm (with accessory 4146704).
- LED lamp max. 11 W A60 E27, not included in packaging.
- Protection class IP44.
- Operating temperature range: -20 … 35 °C according to lamp recommendations.
- Lamp recommendations: Airam Frost LED frost lamps.
Product details
Technical specifications
Product class (ETIM)Luminaire for streets and places (EC000062)
Mounting methodOther
Lamp typeLED exchangeable
With light sourceno
Suitable for number of light sources1
Lamp holderE27
Housing materialAluminium
Surface protectionPowder coating
Housing colourBlack
Material coverGlass transparent
Voltage typeAC
Nominal voltage220-240 V
Type of control gearNot required
Dimming 0-10 Vno
Dimming 1-10 Vno
Dimming DALIno
Product codes
SAPCBK041
STK4116400
PLC4116400
GTIN/EAN6435200205957
Manufacturer part numberA1KABI
Vendor material number4116400
Basic information
Package measurements (L x W x H)670 x 300 x 215 mm
Package volume43.215 l
Package weight3.6 kg
Base uniteach
Package units1 / 5 / 12
Package contents–
UNSPSC39111608
BrandAIRAM
VendorAIRAM ELECTRIC OY AB
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)46.8
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
