EXTRACT AIR HOOD AIRFI EVA-CD90W
Product code
7916078

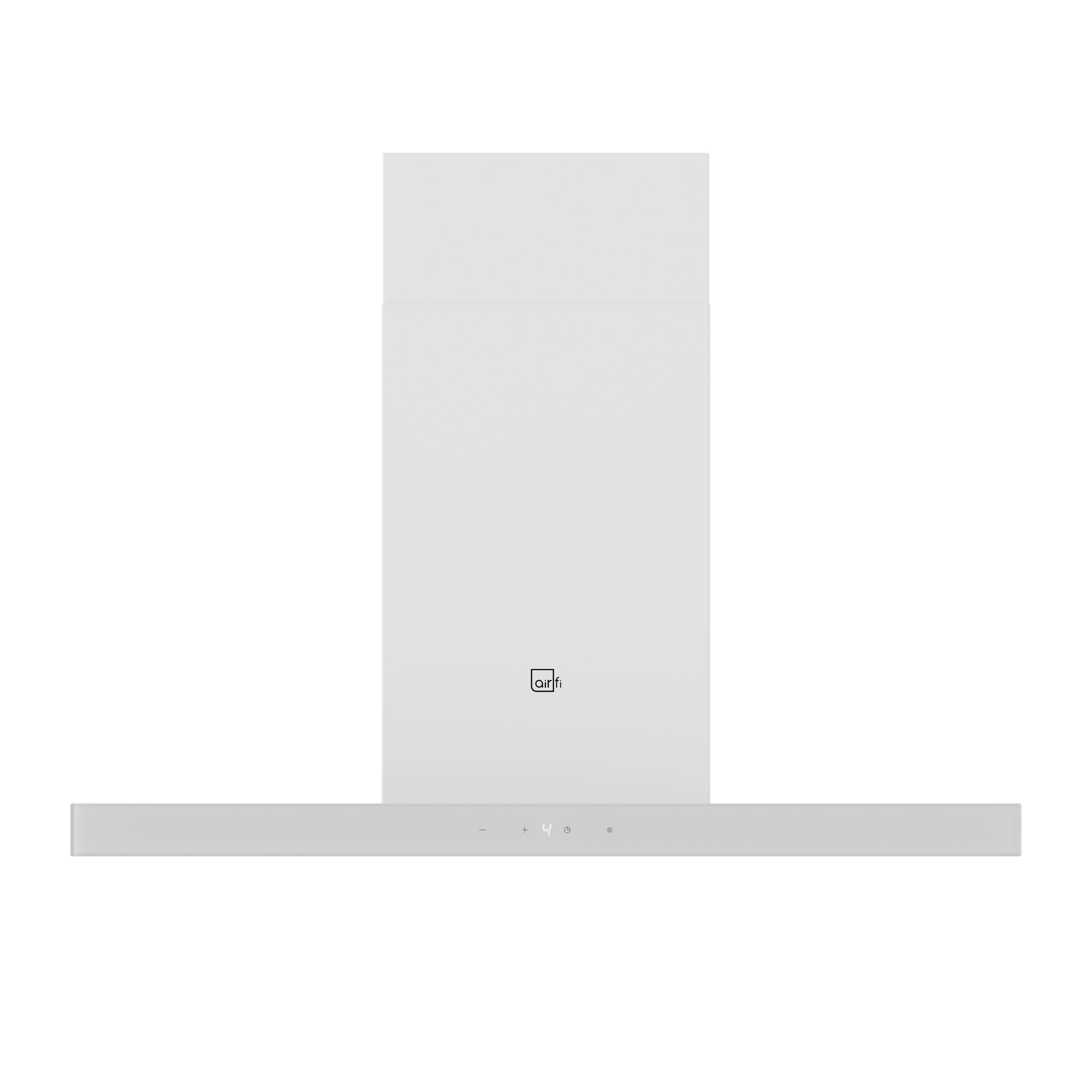

Eva-CD90w, width 900 mm. Frame white, front panel white glass. Island model, includes duct protection (standard 800-950 mm, special low 650-800 mm available at no extra cost upon order). Control knob with 5 speeds. Boost flap with timer and status information. Capacitive switches on front panel, LED lights, plug connection.
The product is suitable for controlling Airfi ventilation units or EC exhaust hoods. Control of AC exhaust hoods or units is possible via an optional accessory (40000063 - Airfi AC control unit Suvi-Ida-Eva). The factory delivery is continuous control = permanently connected. During installation, the programming version can be selected on site, where closing the boost flap stops, for example, the exhaust hood. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Extractor hood for central exhaust system (EC011423)
ConstructionDecorative (isle hood)
Housing colourWhite
Housing materialSteel
Motor speed controlNone
Width900 mm
Depth550 mm
Type of switchTouch control button
Type of lightingLED
Nominal duct diameter125 mm
Material grease filterAluminium
Grease filter class EU2yes
Lockableno
Product codes
SAPCYY964
HPAC7916078
PLC7916078
GTIN/EAN6430072691259
Manufacturer part number20000060
Vendor material number7916078
Basic information
Package measurements (L x W x H)900 x 900 x 600 mm
Package volume486 l
Package weight13 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101601
BrandAIRFI
VendorAIRFI OY AB
The country of origin stated by the supplierFinland
Documents (9)
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Sustainability categories
Circular economy
Features
Availability of spare parts after discontinuation (years)10
