OUTD WALL/CEILING LUMIN. PRIME RAD IP65 1210LM 12W 3K/4K WH
Product code
4512923
PRIME is a surface-mounted IP65-rated light fixture. Suitable applications include canopies, exterior walls, and other damp areas. The light is also suitable for indoor use, such as bathrooms, storage rooms, or corridor spaces. The color temperature of the light is selectable via a DIP switch, with options of 3000 K / 3500 K / 4000 K.
The light is IK10-rated. The IK rating scale ranges from IK00 to IK10. This light can withstand the impact of a 2-kilogram ball dropped from a height of one meter. This model is chainable using spring connectors.
An optional EYE accessory is available for wall-mounted use (also known as the natural light model no. 4512919).
Technical specifications
- light output: 1130 lumens (3000 K), 1210 lumens (4000 K)

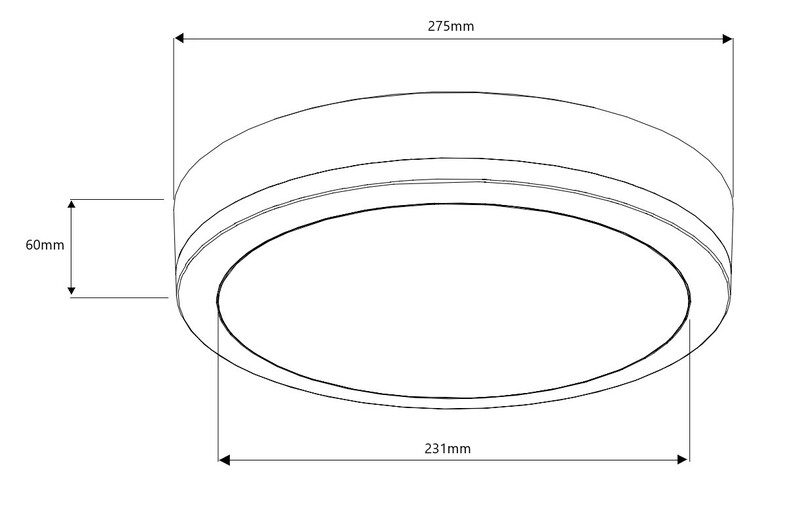

- diameter: 275 mm
- height: 67 mm
- protection class: IP65
- impact resistance: IK10
- dimmable: no
- lifespan: L80B10 56 000h Ta 45 °C
- beam angle: 110°
- color temperature: 3000 K / 3500 K / 4000 K, selectable via DIP switch
Second color option: black.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Housing materialPlastic
Surface protection housingPlastic-coated
Housing colourWhite
Material coverPlastic, opal
Type of gridMatt
Voltage typeAC
Product codes
SAPDJB347
STK4512923
PLC4512923
GTIN/EAN6430080494781
Manufacturer part numberJPL-PV275V-12WDIP-RAD
Vendor material number4512923
Basic information
Package measurements (L x W x H)284 x 287 x 70 mm
Package volume5.706 l
Package weight0.97 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111605
BrandARTEN
VendorARTEN OY
