DOOR GRILLE KIO- 500X100
Product code
8736406

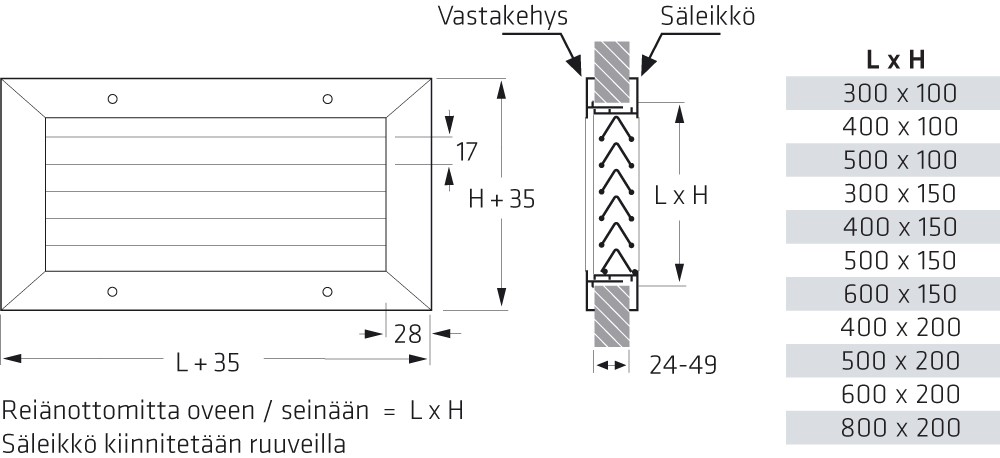

KIO is an inconspicuous air transfer grille for doors or partition walls. The installation depth is adjustable between 30-50 mm according to the structure's thickness. If the structure exceeds 50 mm, one grille is installed on each side of the opening. Color: white RAL9016. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Displacement grille (EC010633)
MaterialSteel
Servomotor, adjustableno
ShapeWall (180°)
InstallationWall
Connection locationOther
Width500 mm
Height100 mm
With wall-mounting bracketno
Product codes
SAPALK273
HPAC8736406
PLC8736406
GTIN/EAN6415887364062
Manufacturer part number8736406
Vendor material number8736406
Basic information
Package measurements (L x W x H)535 x 30 x 135 mm
Package volume2.167 l
Package weight1.2 kg
Package units1
Package contents1 each
UNSPSC40101504
BrandCLIMECON
VendorCLIMECON OY
The country of origin stated by the supplierFinland
Documents (5)
Brochures & documents
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
