LOW SPEED UNIT DINO-A 400X100
Product code
8636807

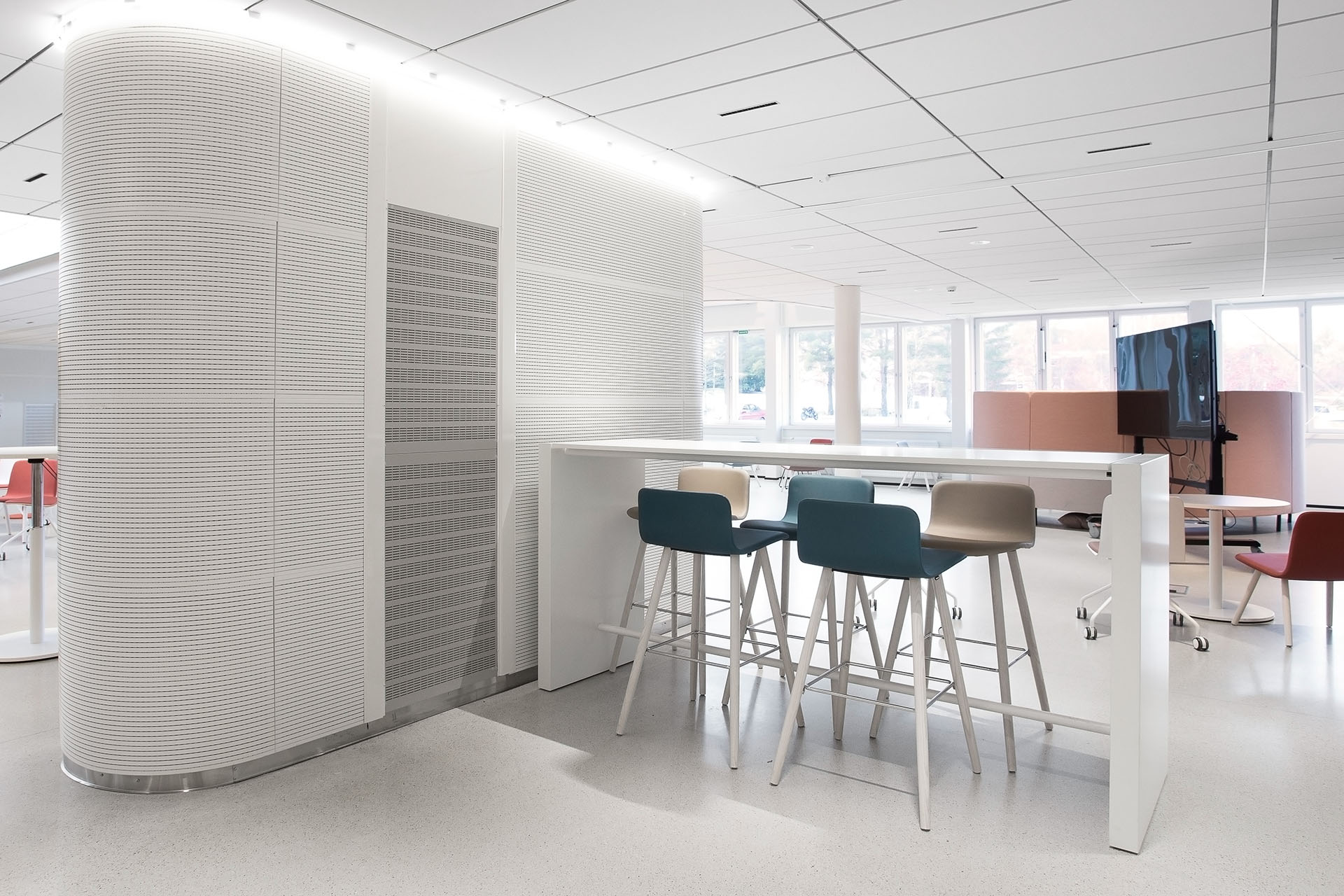

DINO low-speed devices are the best solution for displacement ventilation.
The DINO series low-speed devices combine high performance, stylish appearance, and lifetime adaptability, meaning their airflow patterns can be reconfigured in response to changes in space requirements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Displacement grille (EC010633)
MaterialSteel
Nominal duct diameter connection250 mm
Nominal duct width400 mm
Nominal duct height100 mm
Connection locationAtop

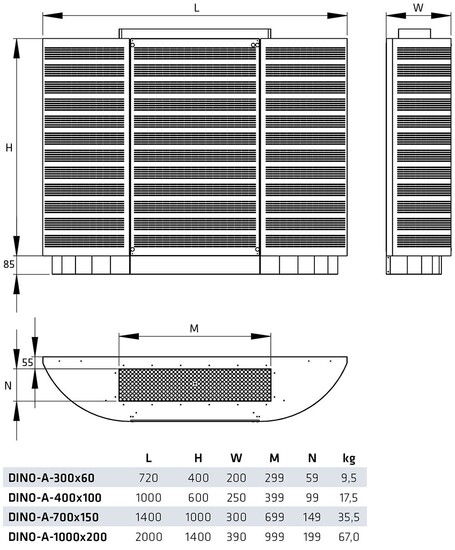

Width1000 mm
Height685 mm
Product codes
SAPANZ063
HPAC8636807
PLC8636807
GTIN/EAN6415886368078
Manufacturer part number8636807
Vendor material number8636807
Basic information
Package measurements (L x W x H)1000 x 250 x 600 mm
Package volume150 l
Package weight17.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101505
BrandCLIMECON
VendorCLIMECON OY
The country of origin stated by the supplierFinland
Documents (7)
Brochures & documents
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Sustainability categories
Circular economy
Features
Warranty (years)5
