LOW SPEED UNIT DINO-A 700X150
Product code
8636808
DINO low-speed devices are the best solution for displacement ventilation.
The DINO series low-speed devices combine high performance, stylish appearance, and lifetime adaptability, meaning their airflow patterns can be reconfigured in response to changes in space requirements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Displacement grille (EC010633)
MaterialSteel

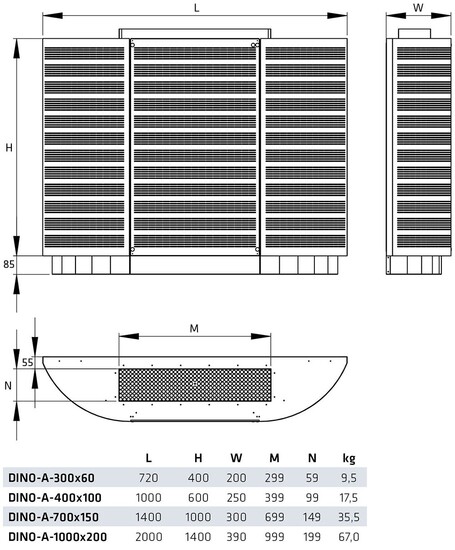

Nominal duct diameter connection400 mm
Nominal duct width700 mm
Nominal duct height150 mm
Connection locationAtop
Width1400 mm
Height1085 mm
Product codes
SAPANZ064
HPAC8636808
PLC8636808
GTIN/EAN6415886368085
Manufacturer part number8636808
Vendor material number8636808
Basic information
Package measurements (L x W x H)1400 x 300 x 1000 mm
Package volume420 l
Package weight35.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101505
BrandCLIMECON
VendorCLIMECON OY
The country of origin stated by the supplierFinland
Documents (9)
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Sustainability categories
Circular economy
Features
Warranty (years)5
Documents (1)
Sustainability brochures & documents
