LOW SPEED UNIT DINO-K 400
Product code
8636835
DINO low-speed devices are the best solution for displacement ventilation.
The DINO series low-speed devices combine high performance, stylish appearance, and lifetime adaptability, meaning their airflow patterns can be reconfigured in response to changes in space usage.

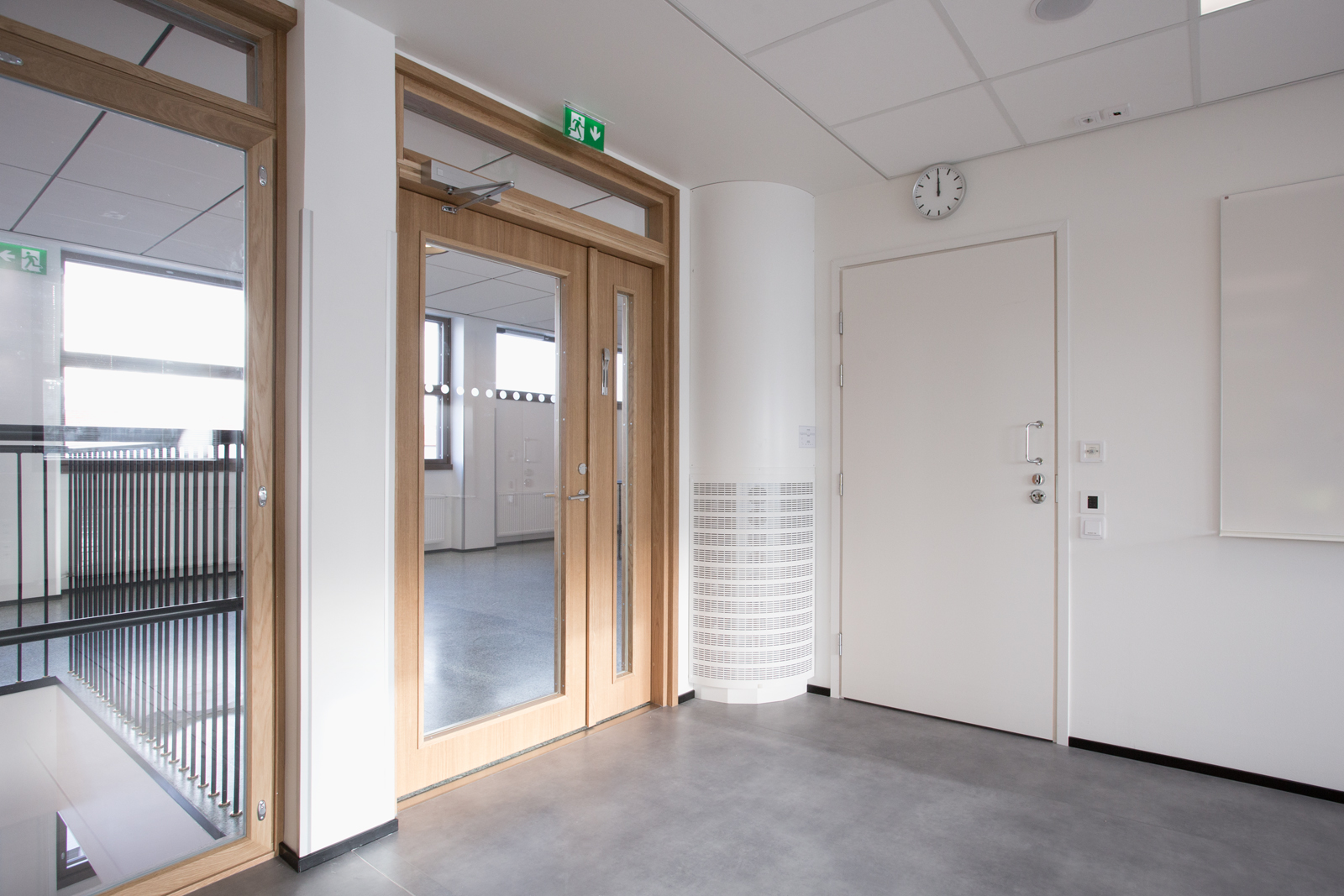

The elegantly designed DINO-K is intended for corner installation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Displacement grille (EC010633)
MaterialSteel
Nominal duct diameter connection400 mm
ShapeAngle (90°)
InstallationFloor
Connection locationAtop

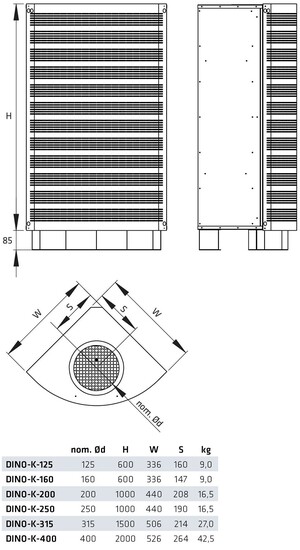

Width526 mm
Height2085 mm
Product codes
SAPANZ071
HPAC8636835
PLC8636835
GTIN/EAN6415886368351
Manufacturer part number8636835
Vendor material number8636835
Basic information
Package measurements (L x W x H)2000 x 400 x 526 mm
Package volume420.8 l
Package weight42.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101505
BrandCLIMECON
VendorCLIMECON OY
The country of origin stated by the supplierFinland
Documents (8)
Brochures & documents
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Sustainability categories
Circular economy
Features
Warranty (years)5
