LOW SPEED UNIT DINO-T 200
Product code
8636865
DINO low-speed units are the best solution for displacement ventilation.
The DINO series low-speed units combine high performance, stylish appearance, and lifetime adaptability, meaning their airflow patterns can be reconfigured in response to changes in space usage.

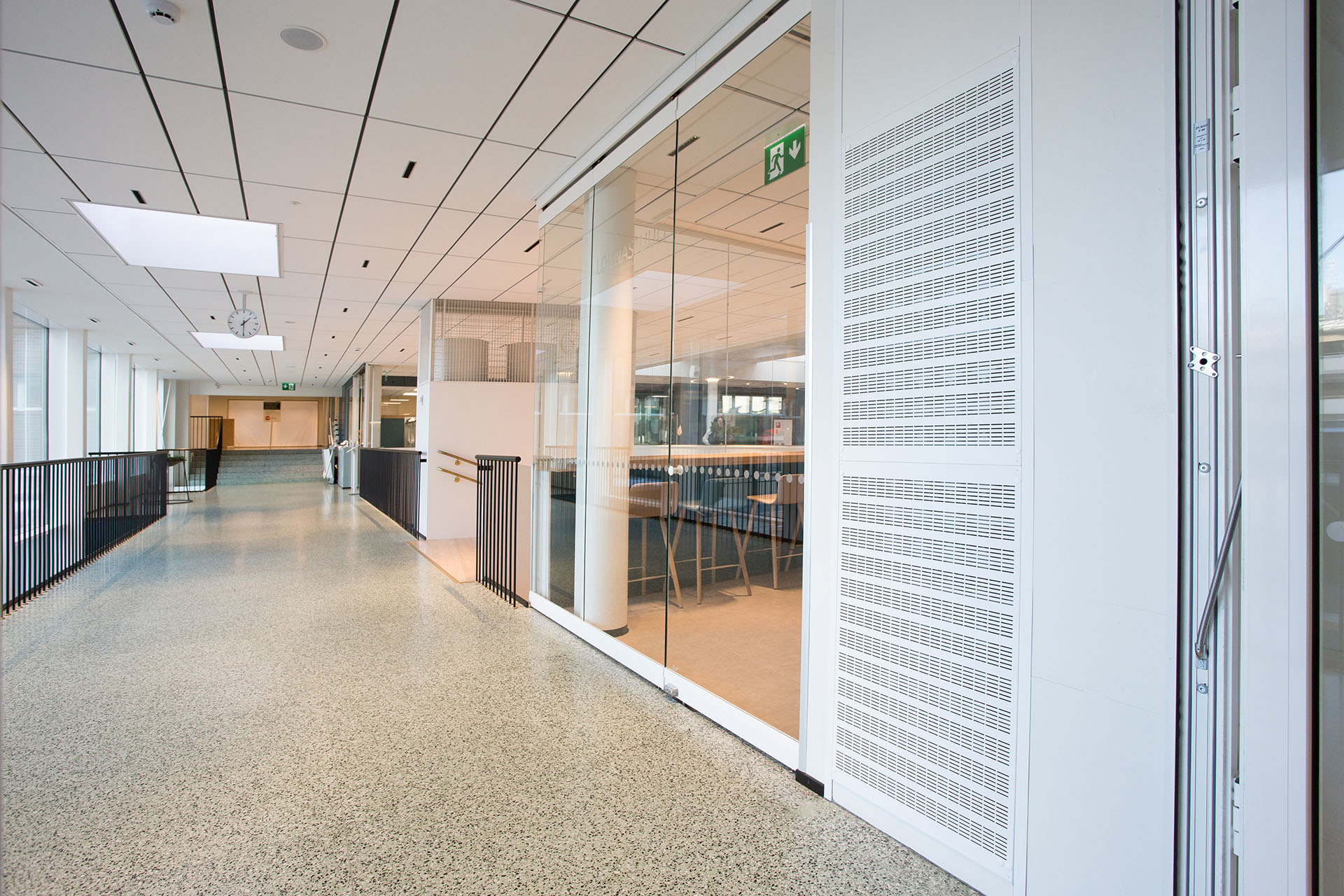

The DINO-T can be elegantly recessed into either a wall or ceiling. The DINO-T is also an excellent choice as a general supply air unit for professional kitchens. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Displacement grille (EC010633)
MaterialSteel
Nominal duct diameter connection200 mm
Connection locationAtop
Width590 mm
Height1190 mm
Product codes
SAPANZ080
HPAC8636865
PLC8636865
GTIN/EAN6415886368658
Manufacturer part number8636865
Vendor material number8636865
Basic information
Package measurements (L x W x H)590 x 345 x 1190 mm
Package volume242.225 l
Package weight23 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101505
BrandCLIMECON
VendorCLIMECON OY
The country of origin stated by the supplierFinland
Documents (10)
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Sustainability categories
Circular economy
More Sustainably Produced
Features
Warranty (years)5
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)835.0468
GWP, uniteach
Source for GWP dataEPD
