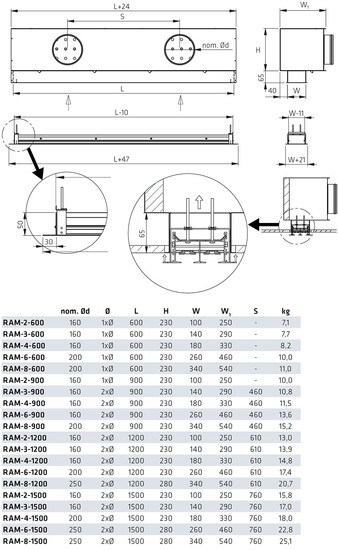

SLOT AIR DIFFUSER RAM-3- 900
Product code
8636313
Supply and exhaust air device for ceiling and wall mounting. The airflow direction is adjustable 0-90° relative to the mounting plane. The directional vanes lock into the desired position. The diffuser is equipped with a 38% perforated plate to ensure even air distribution. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Slot diffuser (EC010630)
Height140 mm
Width900 mm
Cover shapeRectangular
MaterialSteel
Nominal duct diameter connection160 mm
Product codes
SAPALK042
HPAC8636313
PLC8636313
GTIN/EAN6415886363134
Manufacturer part number8636313
Vendor material number8636313
Basic information
Package measurements (L x W x H)950 x 330 x 295 mm
Package volume92.483 l
Package weight10.8 kg
Package units1
Package contents1 each
UNSPSC40101505
BrandCLIMECON
VendorCLIMECON OY
The country of origin stated by the supplierFinland
Documents (7)
Brochures & documents
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Sustainability categories
Circular economy
Features
Warranty (years)5
