SUPPLY AIR DIFFUSER OLOi 125-400

Highly stylish exhaust air terminal for recessed and cassette ceilings. OLO combines modern and elegant design, high air and acoustic performance, and uniquely easy installation.

The OLO’s optimized hole pattern and square-shaped holes provide excellent air and acoustic performance. To achieve high air sound insulation, it is recommended to use the type-approved connection box PAK.

Thanks to its clear structure, the OLO is also easy to clean. The front panel can be completely removed, significantly simplifying cleaning and maintenance.

The exhaust air terminal OLO is extremely easy to install due to its patented horizontal adjustability, which greatly facilitates installation. Even if the exhaust air terminal is not centered in the ceiling opening after duct installation, it can be adjusted into position thanks to its horizontal adjustability without requiring any modifications to the ductwork. Thanks to adjustability, installation is always neat and, in the best case, significantly saves installation time.

Features

• connection size: 125 mm
• installation method: recessed
• installation: ceiling mounting
• easy installation
• patented horizontal adjustability
• easy to clean
• high air and acoustic performance

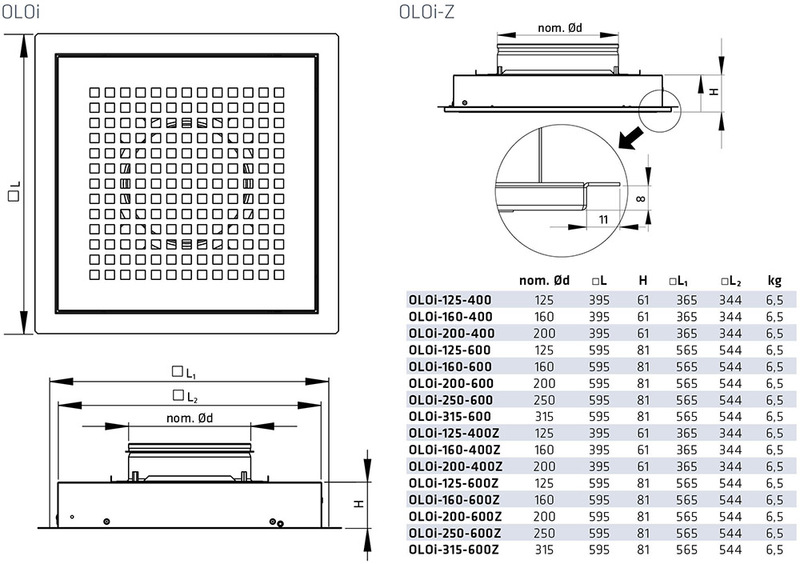

Dimensions

• Řd: 124
• A: 395
• B: 343.5
• H: 61
• L: 365

This product description is an automated translation of the original Finnish description.
