SUPPLY AIR VALVE CLIMECON ECO-WT
Product code
7938524
ECO-WT is a system consisting of the ECO-W wall-mounted air heater and the ECO-T room thermostat. A high-performance self-limiting heating element is integrated into the ECO-W product. A quiet valve ensures efficient room-specific air heating and excellent, leak-proof ventilation even outside the heating season. The ECO-T room thermostat allows for room-specific control of the air heating system. The user-friendly thermostat offers extensive options for high thermal comfort and demand-based heating. Features include a weekly clock, home/away selection, and adaptive learning functionality that adjusts to the room's heating needs. The ECO system can be programmed by setting daily room temperatures and heating times. For example, living and bedrooms can be heated only during periods of occupancy, preventing unnecessary energy use in less frequently used spaces. Room temperature control is always case-specific, and the intelligent room thermostat learns usage patterns to initiate scheduled heating at the right time. Thus, occupants can enjoy comfortable temperatures precisely when it suits them best. In larger rooms with higher heating demands, multiple ECO air heaters can be connected to a single ECO-T room thermostat. The ECO system can be integrated into a building automation system using the Modbus protocol. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Duct heater, electric (EC011599)
ModelRectangular
Housing materialSteel
Connection voltage1 x 230 V
Nominal duct diameter125 mm

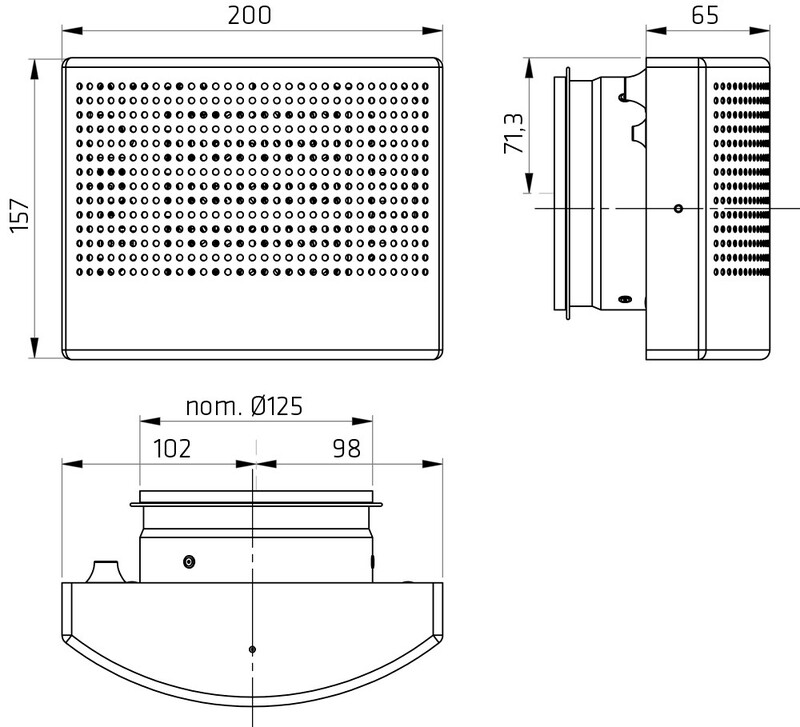

Width200 mm
Height157 mm
Product codes
SAPCMM110
HPAC7938524
PLC7938524
GTIN/EAN6415879385242
Manufacturer part number7938524
Vendor material number7938524
Basic information
Package measurements (L x W x H)200 x 65 x 157 mm
Package volume2.041 l
Package weight1.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101503
BrandCLIMECON
VendorCLIMECON OY
The country of origin stated by the supplierFinland
Documents (9)
Certificates
Brochures & documents
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Sustainability categories
Circular economy
Features
Warranty (years)5
