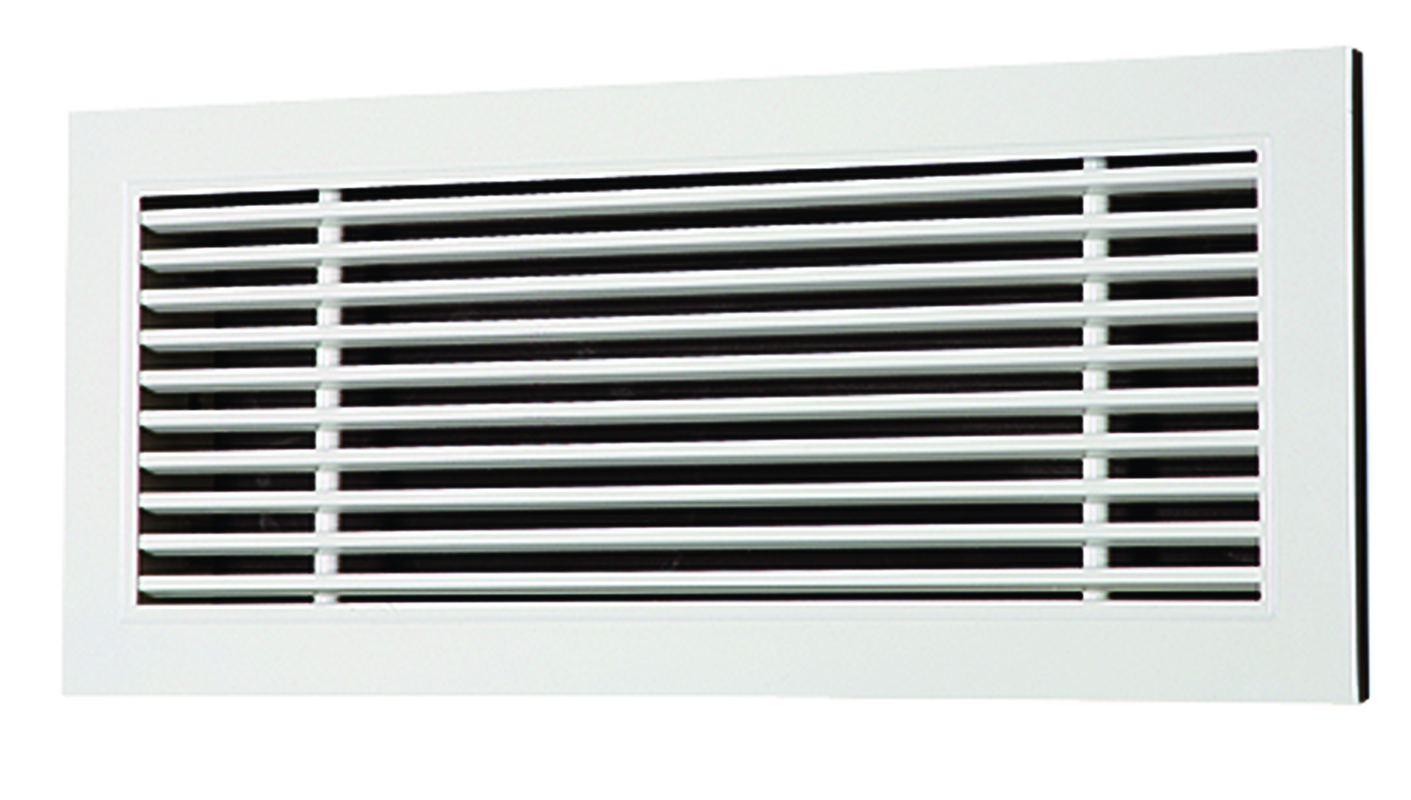

SUPPLY GRILLE EKV+K 1000X400
Product code
8736169
The EKV supply and exhaust air grille has fixed horizontal slats angled 15° upward. The grille is suitable for both wall and ceiling mounting and can be used as a supply, exhaust, or transfer air grille. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Grid grille (EC010347)
MaterialAluminium
Nominal duct width1000 mm
Nominal duct height400 mm
Front width1026 mm
Front height426 mm
Built-in depth55 mm
With volume controlno
With built-in windowyes
Product codes
SAPALK235
HPAC8736169
PLC8736169
GTIN/EAN6415887361696
Manufacturer part number8736169
Vendor material number8736169
Basic information
Package measurements (L x W x H)1026 x 55 x 426 mm
Package volume24.039 l
Package weight4.6 kg
Package units1
Package contents1 each
UNSPSC40101505
BrandCLIMECON
VendorCLIMECON OY
The country of origin stated by the supplierFinland
Documents (4)
Brochures & documents
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
