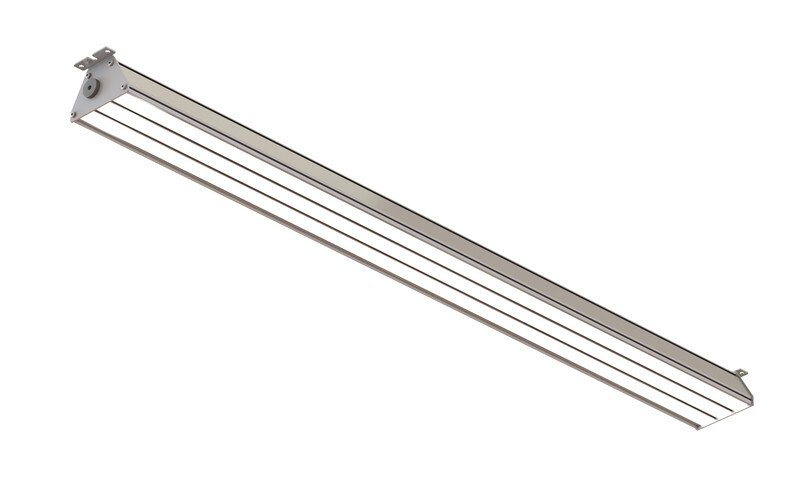

BASIC BATTERN LUMINAIRE PICA PICA 3-200 ON-OFF 840 EWIDE
Product code
4301240
New Easy LED PICA is a robust and efficient general lighting solution for warehouses, industrial halls, and logistics centers.
Comfortable working lighting
PICA’s low flicker index ensures excellent comfortable lighting.
Flicker-free dimming
Thanks to PICA’s high-quality dimming technology, flicker-free light level adjustment.
Easy to install
PICA is delivered ready for installation. Surface mounting with screws directly to ceiling or rail. Spring clips are available in various options. The luminaire is designed to be maintenance-free.
This high-performance model features Extra Wide optics, On/Off control, and a pre-installed rubber cable. Plug and chaining are available separately. The equivalent DALI control model is available with electrical number 4301236.
Ask for more This product description is an automated translation of the original Finnish description.
Comfortable working lighting
PICA’s low flicker index ensures excellent comfortable lighting.
Flicker-free dimming
Thanks to PICA’s high-quality dimming technology, flicker-free light level adjustment.
Easy to install
PICA is delivered ready for installation. Surface mounting with screws directly to ceiling or rail. Spring clips are available in various options. The luminaire is designed to be maintenance-free.
This high-performance model features Extra Wide optics, On/Off control, and a pre-installed rubber cable. Plug and chaining are available separately. The equivalent DALI control model is available with electrical number 4301236.
Ask for more This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Batten luminaire (EC000109)
Lamp typeLED not exchangeable
Lamp holderOther
MaterialAluminium
Housing colourWhite
Voltage typeAC/DC
Nominal voltage198-264 V
Dimmableno
Dimming 0-10 Vno
Dimming 1-10 Vno
Dimming DALIno
Degree of protection (IP)IP43
Protection class according to IEC 61140I
Colour of lightWhite
Colour temperature4000-4000 K
Colour rendering index CRI80-89
Product codes
SAPCPS695
STK4301240
PLC4301240
GTIN/EAN6430064152225
Manufacturer part number1006088
Vendor material number4301240
Basic information

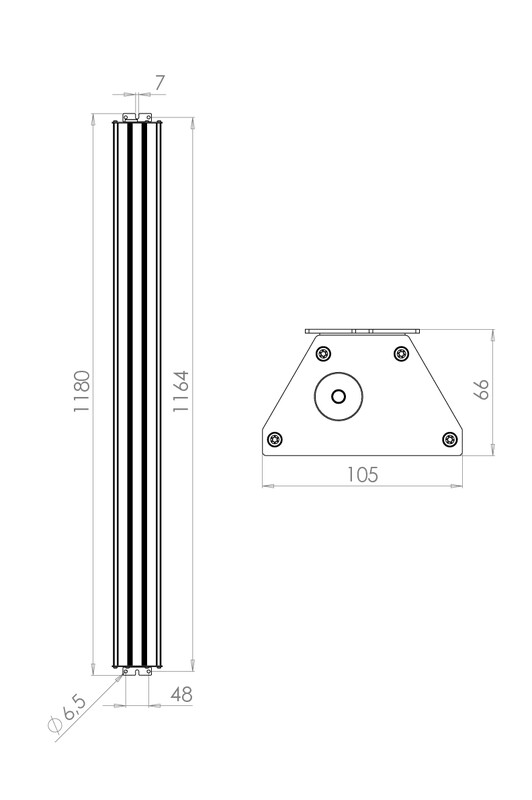

Package measurements (L x W x H)1190 x 60 x 100 mm
Package volume7.14 l
Package weight3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandEASY LED
VendorEASY LED OY
The country of origin stated by the supplierFinland
Documents (4)
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
