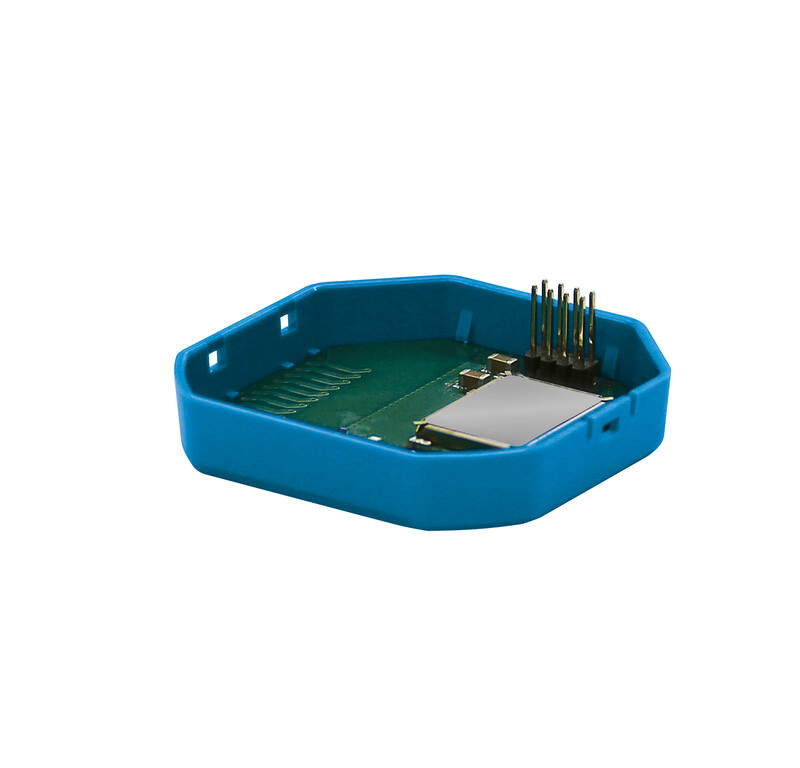

EXPANSION MODULE EOA64
Product code
2616932

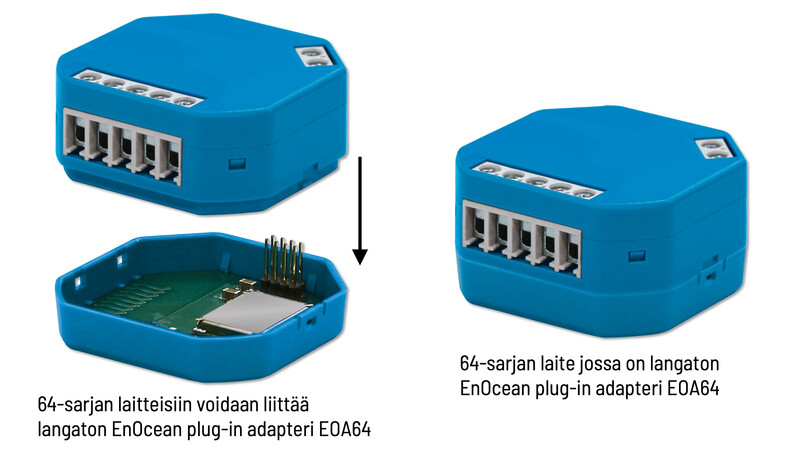

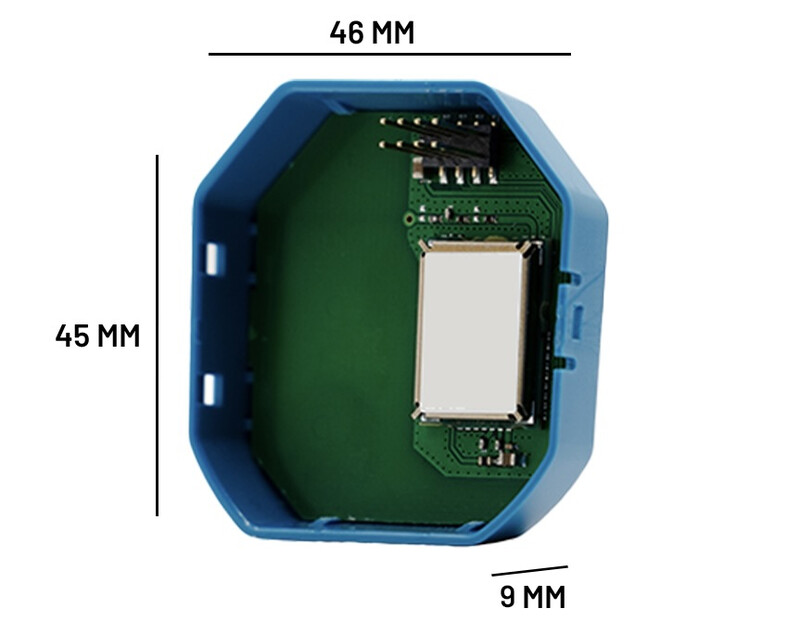

Wireless EnOcean plug-in adapter for all ELTAKO 64-series devices. Dimensions 46 x 45 mm, depth 9 mm. Flush-mountable together with 64-series devices. The plug-in EnOcean adapter can be attached to the back of all 64-series devices, enabling all compatible ELTAKO wireless EnOcean devices and sensors, such as wireless battery-free buttons, to be programmed to control 64-series devices wirelessly. Additionally, these EnOcean devices can be forwarded via Matter to control any other devices. Up to 30 different wireless EnOcean buttons and sensors can be connected to a single EOA64 adapter. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Radio receiver (EC000436)
Suitable for dimmeryes
Suitable for pulse buttonyes
Suitable for roller shutter switchno
Suitable for venetian shutter switchno
Suitable for venetian-/roller shutter switchno
Suitable for switchyes
In housingyes
In tube base housingno
Printed circuit board/moduleno
Current supplyOther
Push button modeyes
Switching modeyes
With manual radio transmitterno
With radio coding deviceno
With radio controlled push buttonno
Product codes
SAPDIH198
STK2616932
PLC2616932
GTIN/EAN4010312328699
Manufacturer part numberEOA64
Vendor material numberEOA64
Basic information
Package measurements (L x W x H)20 x 70 x 90 mm
Package volume0.126 l
Package weight0.049 kg
Base uniteach
Package units1 / 10 / 100
Package contents–
UNSPSC39122206
BrandELTAKO
VendorELTAKO GMBH
