PUSHRELAY FMS61NP-230V WIRELESS

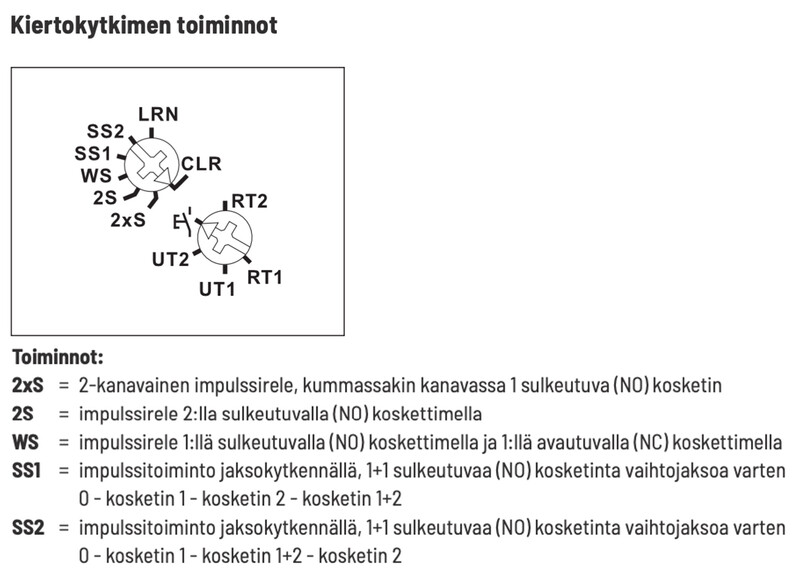

Wireless 2-channel multifunction impulse relay module with two independently controllable channels and five selectable relay contact functions. Used for example for lighting on/off switching. Each relay channel can be connected to its own buttons (up to 35 buttons total), allowing each relay contact to be controlled separately with its own buttons (function 2xS). In addition, there are five different relay contact functions available. Functions selectable with the upper rotary switch:

• 2xS = 2-channel impulse relay, one normally open (NO) contact in each channel.
• 2S = Impulse relay with two normally open (NO) contacts.
• WS = Impulse relay with one normally open (NO) contact and one normally closed (NC) contact.
• SS1 = Impulse function with step switching, 1+1 normally open (NO) contacts for step sequence, 0 - contact 1 - contact 2 - contact 1+2.
• SS2 = Impulse function with step switching, 1+1 normally open (NO) contacts for step sequence, 0 - contact 1 - contact 1+2 - contact 2.

The lower rotary switch is used exclusively for programming wireless buttons and transmitters.

• 1+1 normally open (NO), non-potential-free contacts, 10A/250V AC.
• 230V LED load up to 400W, incandescent lamp load up to 2000W.
• Standby power consumption only 0.8 watts.

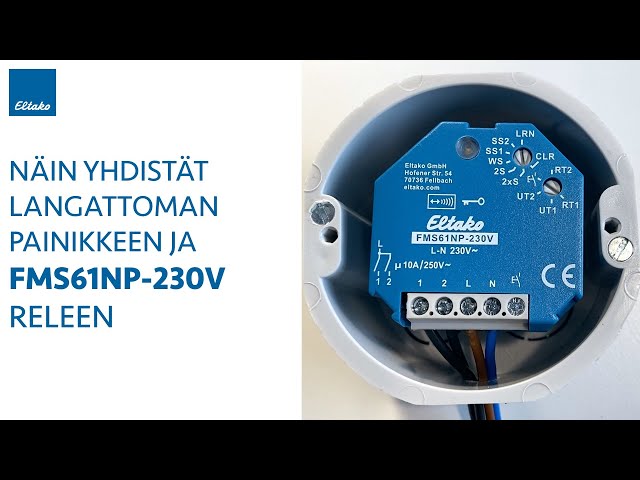

• Flush mounting, length 45mm, width 45mm, depth 33mm.
• Supply, operating, and control voltage 230V.
• Maximum current 16A total for both contacts at 230V.
• If supply voltage is interrupted, the switching state remains unchanged.

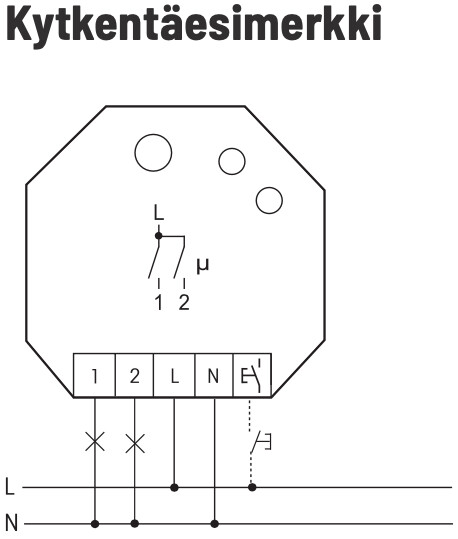

• Can also be controlled by a conventional wired spring-return 230V button (only in function 2xS, terminal 1).
• The LED indicator flashes during programming according to the operating instructions, and briefly flashes whenever it receives a wireless signal during operation.

This product description is an automated translation of the original Finnish description.
