RELAY UNIT ESR64NP-IPM

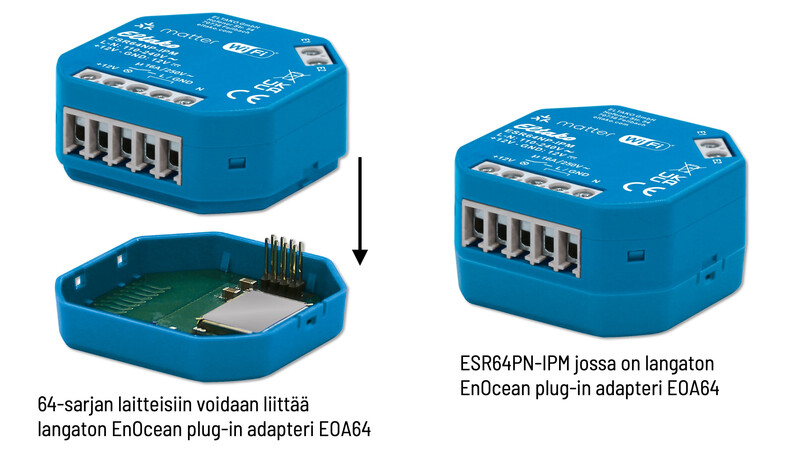

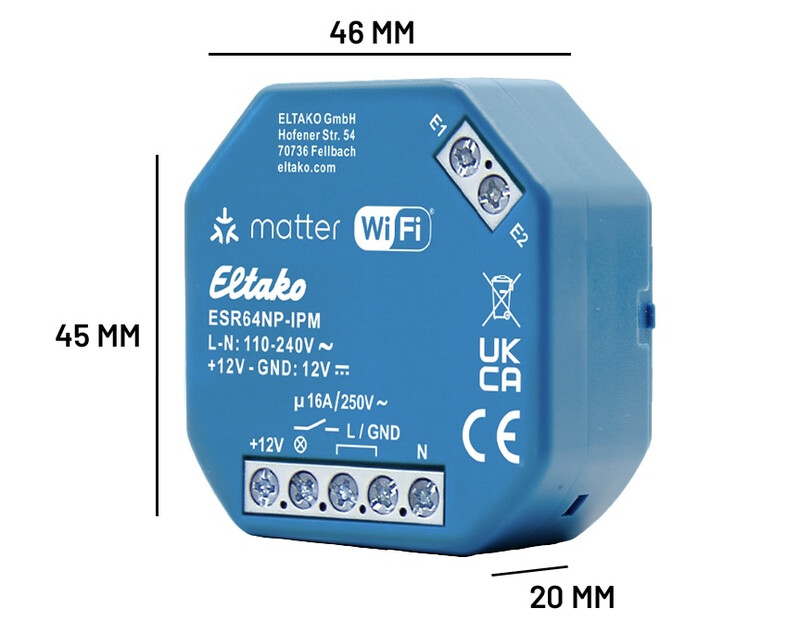

Matter-certified general relay. Can be used either as a push-button relay or an intermediate relay. 1 normally open (NO) contact, 16A/250V AC. Supply voltage 12V DC or 110-230V AC, switching voltage and control voltage 12V DC or 110-230V AC. Switching, control, and supply voltages must have the same potential. The general relay can be controlled directly via Wi-Fi by any Matter-compatible application (e.g., Apple Home, Home Assistant, Google Home, Amazon Alexa). With the free Finnish-language ELTAKO Connect app, you can change the device settings and configuration. Functionality can be extended with the wireless EnOcean plug-in adapter EOA64 (No. 26 169 32), which allows the relay to be controlled by any wireless, battery-free ELTAKO EnOcean button. Also available as a complete general relay package including ESR64NP-IPM + EOA64 (No. 26 169 33). Two push-button inputs (E1, E2) for any wired switch or spring-return push button. All 64-series devices function as Matter bridges, so their wired push-button inputs and wireless EnOcean buttons can be forwarded to Matter to control any other devices. • Flush mounting. 46x45mm, depth 20mm. • Can also be mounted on a DIN rail using the U2RP mounting base (No. 28 144 06). • Screw terminals for conductors up to 2.5 mm² cross-section. • 230V LED load up to 600W, incandescent lamp load up to 2000W. • Standby power consumption only 0.7 watts. • Neutral connection for protection of the relay contacts and connected load. • Two input terminals for any wired switch or spring-return push button. Use of illuminated push buttons is not permitted. • Wi-Fi connection uses the 2.4 GHz frequency band and enables OTA updates (Over-the-Air). • This relay is Matter-certified, allowing it to be connected to different ecosystems and used simultaneously. A compatible Matter controller is required for Matter-based control for each ecosystem. For example, Apple Home requires a HomePod mini, Amazon Alexa requires an Echo Dot, and Google Home requires a Nest mini. This product description is an automated translation of the original Finnish description.
