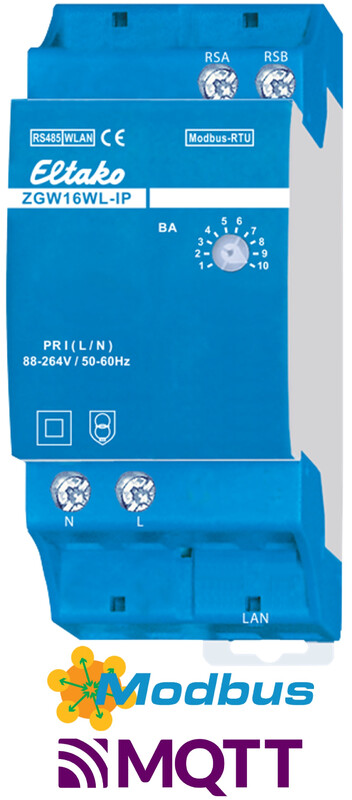

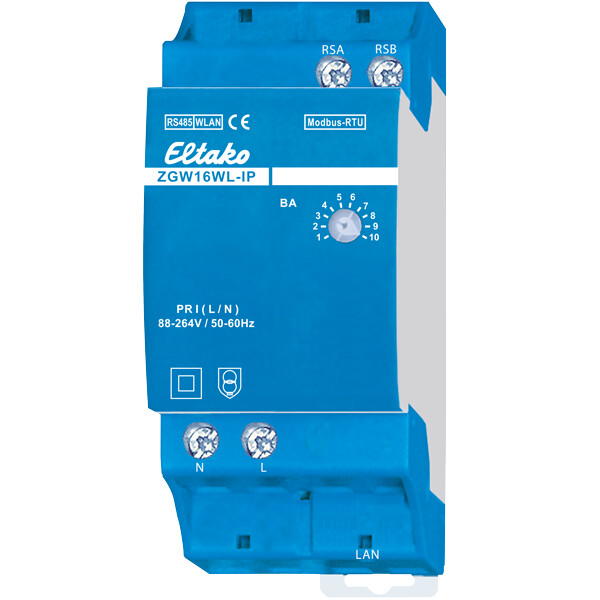

RS485 BUS GATEWAY ZGW16WL-IP

Modbus/MQTT gateway with IP interface via WLAN or LAN network for forwarding data from ELTAKO Modbus energy meters. Enables monitoring and visualization of current and historical energy meter data using a web browser and the free Finnish ELTAKO Connect app, either locally on the same WLAN network or remotely via a VPN tunnel. All historical data is stored locally directly on the ZGW16WL-IP device, requiring no cloud services. Data transfer via MQTT and REST API. • Gateway with IP interface via WLAN or LAN network. • Standby power consumption only 0.9W. • 2 DIN module = 36 mm wide, 58 mm deep. • WLAN connection uses the 2.4 GHz frequency band. • LAN connection via RJ45 connector with 10/100Base-T. • IP connection via either LAN or WLAN. • The gateway transmits data from any ELTAKO Modbus energy meter using the MQTT protocol and REST API. • Data is forwarded from ZGW16WL-IP to any external MQTT broker. • Additional information about MQTT can be found at: www.mqtt.org. • Commissioning and viewing current and historical energy meter values is possible via the ELTAKO Connect app or the web interface. • Settings and updates are performed via the web interface. • REST API information is available on our website from the product card. This product description is an automated translation of the original Finnish description.
