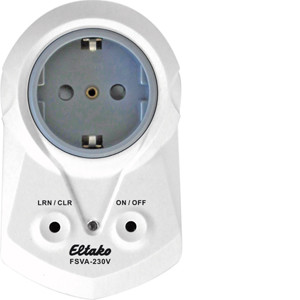

RADIO SOCKET ACTUATOR FSVA-230V-10A
Product code
2814106
- 1 normally closed (NO) non-potential-free contact 10 A/250 V AC
- LED lamps max. 400 W
- Integrated current measurement up to 10 A
- Optional encrypted wireless communication with two-way and repeat function.
- Standby power consumption only 0.8 watts.
- Adapter for Schuko socket with enhanced voltage protection.
- Supply and switching voltage 230 V.
Product details
Technical specifications
Product class (ETIM)Switch actuator for bus system (EC001097)
Bus system KNXno
Bus system KNX-RF (Radio Frequency)no
Bus system radio frequencyyes
Bus system LONno
Bus system Powernetno
Other bus systemsNone
Radio frequency bidirectionalyes
Mounting methodSocket outlet
Local operation/hand operationyes
With LED indicationyes
Max. switching power2000 W
Max. switching power LED400 W
Output power2000 W
Suitable for C-loadyes
Max. number of switching contacts1
Product codes
SAPCOR003
STK2814106
PLC2814106
GTIN/EAN4010312314555
Manufacturer part numberFSVA-230V-10A
Vendor material number2814106
Basic information
Package measurements (L x W x H)231 x 92 x 70 mm
Package volume1.488 l
Package weight0.15 kg
Base uniteach
Package units1 / 10 / 100
Package contents–
UNSPSC43201602
BrandELTAKO
VendorELTAKO GMBH
