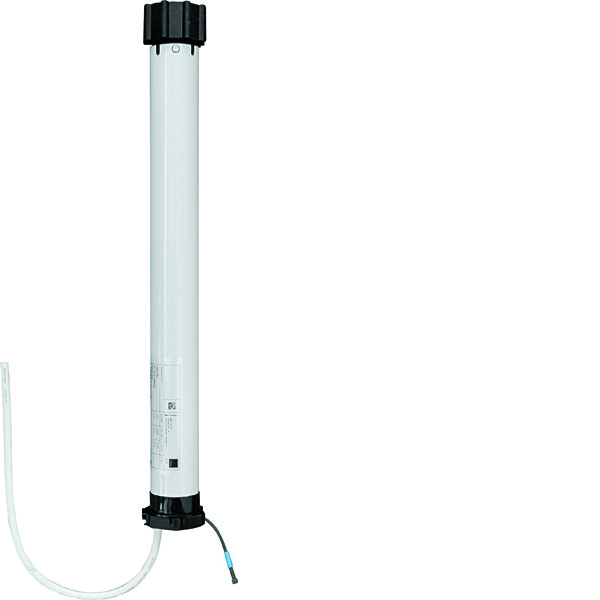

TUBULAR MOTOR FRM60M10

Product code
2826016
Wireless tube motor, 466mm, torque 10Nm, speed 14/min, whisper mode 5/min. IP44. • Intelligent force measurement • Blind protection up/down and free movement (shutdown based on torque) • Adjustable release • End positions can be set with the installation cable • Silent soft braking • Protection class IP44 • Long 10-minute operating time • Driving technology based on extensive operational experience • Extremely quiet • Released end positions • Blind protection function • Whisper mode (activated by holding the button pressed) • Slow slat descent • Soft start/stop • Automatic commands in whisper mode • Long service life (due to very low heat generation) • Soft brake (contactless, wear-free) This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Tube mounted motor (EC000345)
Outer diameter50 mm
Moment of torque10 Nm
Octagonal steel shaft SW 40no
Octagonal steel shaft SW 50no
Octagonal steel shaft SW 60yes
Octagonal steel shaft SW 70no
For roller blindsyes
For awningsyes
Type of end switchElectronic
Electronic route monitoringyes
Electronic obstacle recognitionyes
With shaft adaptoryes
Length466 mm

Product codes

SAPDJL748
STK2826016
PLC2826016
GTIN/EAN4010312321249
Manufacturer part numberFRM60M10
Vendor material number2826016

Basic information

Package measurements (L x W x H)20 x 70 x 90 mm
Package volume0.126 l
Package weight0.064 kg
Base uniteach
Package units1
Package contents
UNSPSC52161525
BrandELTAKO
VendorELTAKO GMBH
