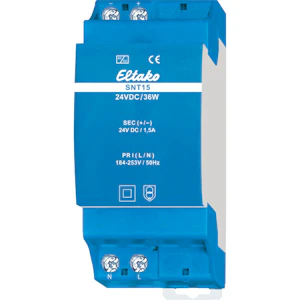

WIDE-RANGE POWER SUPPLY ELTAKO S15 24V DC/36W, DIN

Power supply 24V DC. Rated power 36W. Standby consumption only 0.1 watt. Modular unit for DIN-rail mounting according to standard DIN-EN 60715 TH35. 2 modules = width 36mm, depth 58mm. If the load exceeds 50% of the rated capacity, or whenever other power supplies above 12W or, for example, light dimmers are installed adjacent, a 1/2 DIN-module air gap must be left on both sides of the device using spacer DS12 (part no. 28 140 39) for cooling purposes. Input voltage range 230V (-20% to +10%). Efficiency 90%. Stabilized output voltage 24V DC ±1%, low residual ripple. Short-circuit protection. Overload and overtemperature protection with automatic shutdown. In case of overload, the output current is limited to 1.75A, causing the voltage to drop accordingly. If the output voltage falls below 11V or the temperature exceeds the limit, the power supply switches off and automatically restarts once normal operating conditions are restored (automatic reset function). This product description is an automated translation of the original Finnish description.
