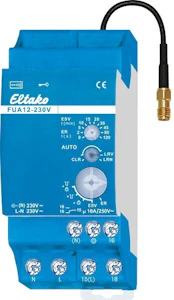

WIRELESS UNIVERSAL ACTUATOR FUA12-230V, 1CO 10A

Wireless universal relay with interchangeable antenna, integrating an antenna module and a 1-channel relay. Impulse relay with integrated relay function, 1 potential-free changeover contact (CO) 10 A/250 V AC. Wireless universal relay FUA12 combines a wireless antenna module and a 1-channel impulse and line voltage relay using DX technology. In the same relay, the impulse relay function (ESV) enables on/off switching and the line voltage relay function (ER) keeps the relay engaged as long as the button is held down. Additionally, a release delay can be set between 2 and 120 minutes, with a release delay and release warning. - Long wireless range - Incandescent lamp load up to 2000 W, equipped with DX technology - Bidirectional operation - Encrypted wireless data transmission - Standby power consumption of only 0.9 watts - Modular unit for DIN rail mounting according to standard DIN-EN 60715 TH35 - 2 modules = width 36 mm, depth 58 mm. Supply voltage 230 V - Antenna interchangeable, e.g., FA250 No. 28 140 15 when installed in a metal enclosure - Wireless universal relay FUA12 combines a wireless antenna module and a 1-channel impulse and line voltage relay using DX technology - If the supply voltage is interrupted, the switching state is retained - When power is restored, the device switches off in the preset state - The load must not be switched on after installation until a short automatic synchronization after power-on is completed - Using the patented Eltako Duplex technology (DX), normally potential-free contacts can still be switched at the neutral point of 230 V AC 50 Hz, thereby significantly reducing their wear - For this purpose, simply connect the neutral conductor to terminal (N) and L to terminal 15(L) - Standby power consumption then increases by only 0.1 W - The device can also be controlled using a conventional wired push button with terminals - In this case, the N conductor must be connected to terminal (N) - Current through the indicator light is not permitted - 230 V push button: control voltage 0.4 mA, maximum parallel capacitance 0.3 ?F (approximately length) (1000 m) for control cable This product description is an automated translation of the original Finnish description.
