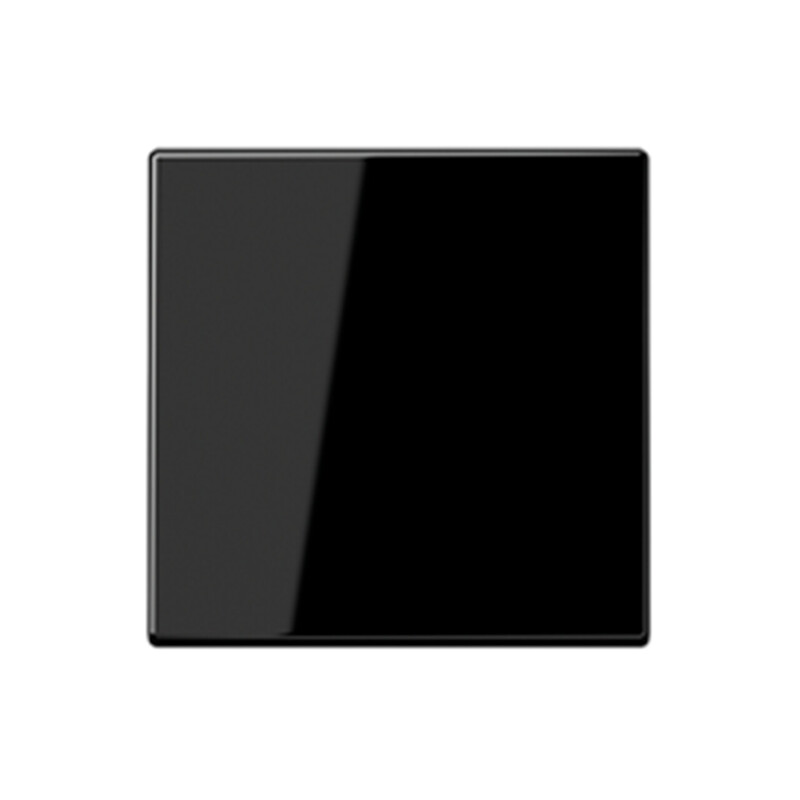

DIMMER TOUCH INTRO UNIVERSAL 3-100W, 420VA, BL
Product code
2621170
Permissible loads: Dimmable LEDs (230 V) 3-100(200) W, Incandescent lamps 20-420 W, Halogen lamps (230 V) 20-420 W, Electronic transformers 20-420 W, Electronic transformers for low-voltage LEDs typically 20-100 W, Inductive transformers 20-420 VA, Inductive transformers for low-voltage LEDs typically 20-100 VA, Dimmable fluorescent lamps typically 3-100 W. Recess depth 25 mm. Automatically detects the load and sets the appropriate dimming method. The dimmer also operates without an N conductor (limited). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Dimmer (EC000025)
Assembly arrangementBasic element with central cover plate
Method of operationPush button
App control via Bluetoothno
Serial dimmerno
Type of loadUniversal
Substation inputyes
Light value memoryyes
Applicable with buttonyes
Applicable with movement sensoryes
Applicable with presence indicatoryes
Applicable with time switch/timeryes
Applicable with transmission buttonno
Applicable with infrared buttonno
Mounting methodFlush-mounted
Type of fasteningMounting with claw and screw
Product codes
SAPCGM796
STK2621170
PLC2621170
GTIN/EAN6438100348656
Manufacturer part number1711DE-LS1700SWFI
Vendor material number2621170
Basic information
Package measurements (L x W x H)82 x 82 x 67 mm
Package volume0.451 l
Package weight0.108 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39122206
BrandENSTO
VendorLEGRAND FINLAND OY
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Ecolabels
M1 Label
The product is low emission in accordance with M1 requirements
