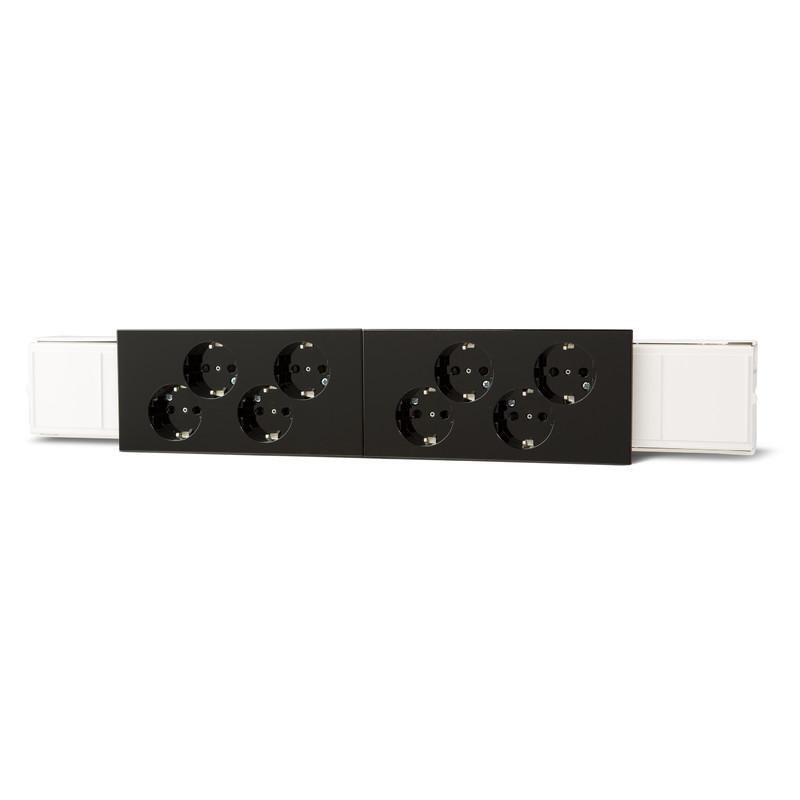

DUCT SOCKET ENSTO EDUCT EDUCT SOCKET 8-GANG, BLACK
Product code
1404375
Easily attachable pre-wired socket outlet. Compatible with Elwia Ductel and Meka Instal aluminum conduit systems. Includes connectors for rigid, multi-strand, and fine-strand wires up to 4 mm². For 6 mm² wires, order the AL2.12 connector separately (note: 12-pin). Chainable. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelSocket outlet with protective contact CEE 7/3 (type F)
Protective contactOther
Number of active contacts (round)16
With signal lampno
Number of modules (module system)1
Number of socket outlets switchable0
Number of phases1
Imprint/indicationOther
Connection typeOther
With hinged lidno
With enhanced contact protectionyes
Label space/information surfaceno
ColourBlack
RAL-number (similar)9005
Metallic colourno
Product codes
SAPCKC655
STK1404375
PLC1404375
GTIN/EAN6418677343902
Manufacturer part numberEDUCT-1520-8SWFI
Vendor material number1404375
Basic information
Package measurements (L x W x H)57 x 497 x 85 mm
Package volume2.408 l
Package weight0.625 kg
Base uniteach
Package units1 / 270
Package contents–
UNSPSC39121302
BrandENSTO
VendorLEGRAND FINLAND OY
Documents (3)
Brochures & documents
Links
Environment and safety
Ecolabels
M1 Label
The product is low emission in accordance with M1 requirements
