WALL LUMINAIRE EXWALL MINI FLEX AS M BLACK
exWall is a robust and efficient wall light for illuminating courtyards and wall areas. Two full-range options: exWall and exWall Mini Flex.

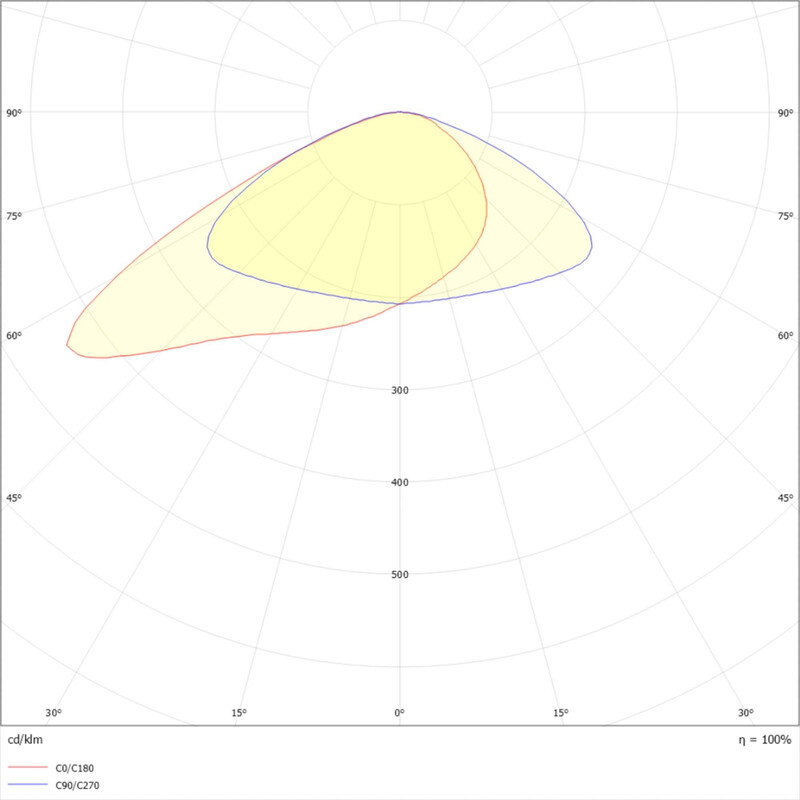

Thanks to its asymmetric light distribution, exWall evenly illuminates walkways up to 10 m wide. Recommended mounting height is 2–7 m, depending on the luminaire and distance between luminaires.

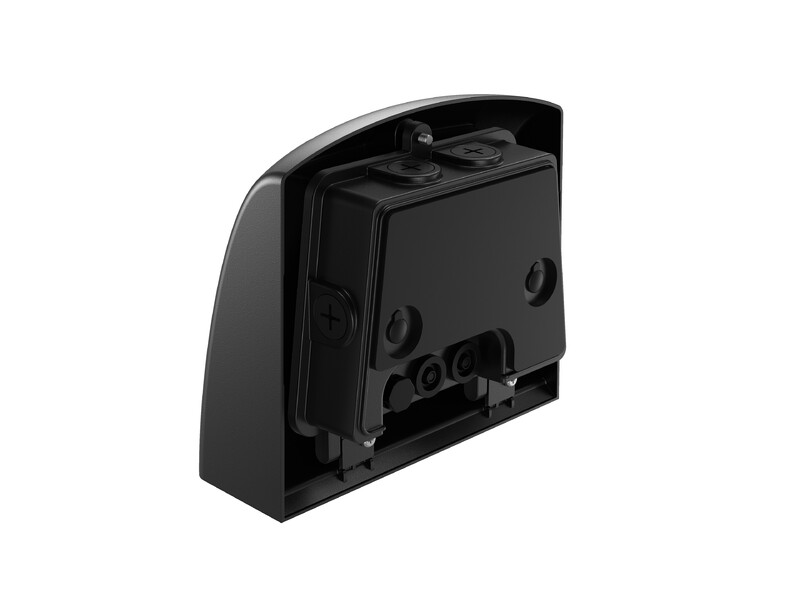

The luminaire is easy to connect and install. The cable can be routed from any side or from the back, and the luminaire is chainable. The housing is made of corrosion-resistant die-cast aluminum. Mounting to the wall requires four M4 or M5 screws. Supplied with one cable gland.
Available housing color options: P, bronze (RAL8019) or M, black (RAL9005). exWall Mini Flex is available in black only.
exWall- ON/OFF
- exWall Flex offers three power and luminous flux options, allowing easy selection of the appropriate power during installation. Thus, one luminaire is suitable for various mounting heights. The Flex version is not available with DALI control.
- DALI with CLO (constant light output) feature in the driver. This function ensures consistent light output throughout the luminaire’s entire lifespan, reducing energy consumption and extending LED life by avoiding continuous full-power operation.
- D2D with built-in 6-hour dimming
- The luminaire has a built-in 6 kV surge protection
Mounting height 3–7 m, for example, a uniformly illuminated walkway 10 m wide when mounted at 6 m height with 10 m spacing (40 W / 5200 lm).
exWall- 40 W / 5200 lm
- 36 W / 4300 lm (DALI)
- 17 W / 2300 lm
- 24 W / 3200 lm
- 33 W / 4300 lm
Power and color temperature selectable during installation via dip switch. Mounting height 3–4 m, for example, a uniformly illuminated walkway 8 m wide when mounted at 4 m height with 8 m spacing (20 W / 2600 lm).
- 10 W / 1300 lm
- 12 W / 1600 lm
- 15 W / 1900 lm
- 17 W / 2200 lm
- 20 W / 2600 lm
