ANTENNA 3G/4G/GSM PANEL 6-9dBi 50cM NF

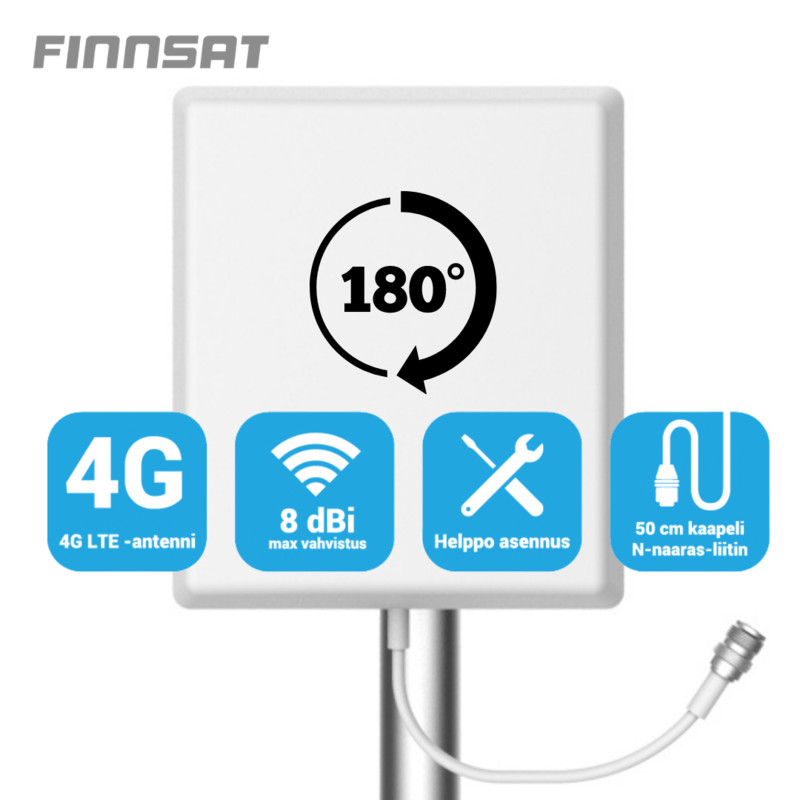

With the Finnsat FS1000-N panel antenna, you get better 4G LTE connectivity than with a modem alone. The FS1000-N panel antenna's 180° wide reception angle helps in urban areas where the direction of the best signal can vary and signal reflections are common.

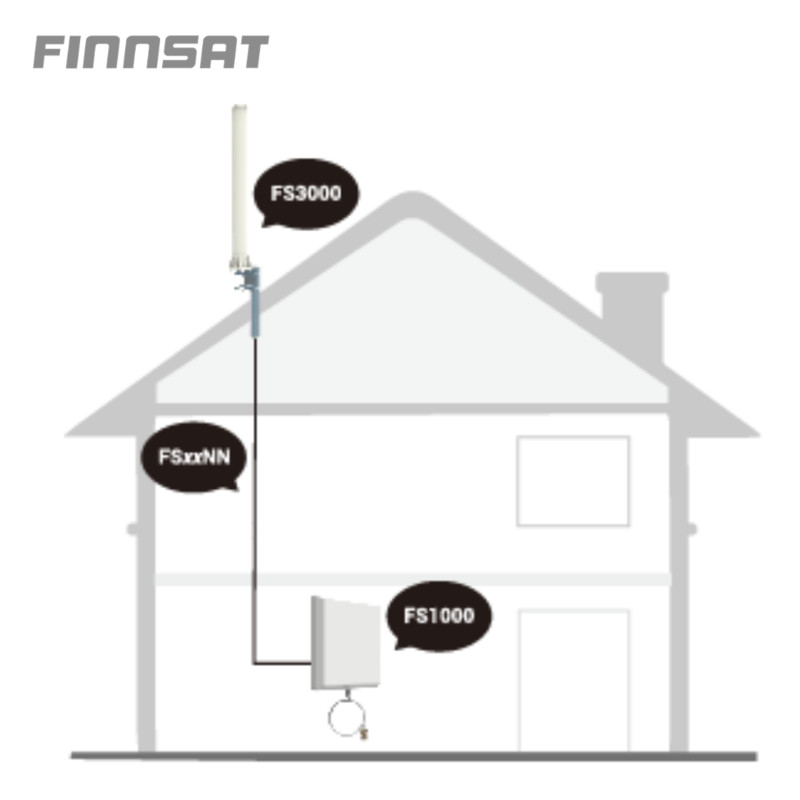

According to the Rescue Act, a technical system enabling mobile communication must be available in civil defense shelters. A compliant system can be easily implemented by installing the FS1000-N antenna inside the shelter, the omnidirectional FS3000 antenna outside, and connecting them with a suitable length of low-loss FSxxNN cable.

TECHNICAL SPECIFICATIONS:

• Frequency bands: 698–806, 806–960, 1710–2500, 2500–2700 MHz
• Impedance: 50 Ohm
• VSWR: <2
• Gain: 8/9 dBi
• Polarization: Vertical or horizontal
• Beamwidth: H: 90 ±15° and 75 ±12°
• Beamwidth: V: 60 ±5° and 55 ±5°
• Front/back ratio: > 10 dB
• Max power: 50 W
• Connector: N-female
• Dimensions: 210 × 180 × 45 mm
• Weight: 0.45 kg
• Material: UV-resistant ABS
• Cable: 50 cm
• Mounting: On wall or into mast pipe with max Ø 30–53 mm

This product description is an automated translation of the original Finnish description.
