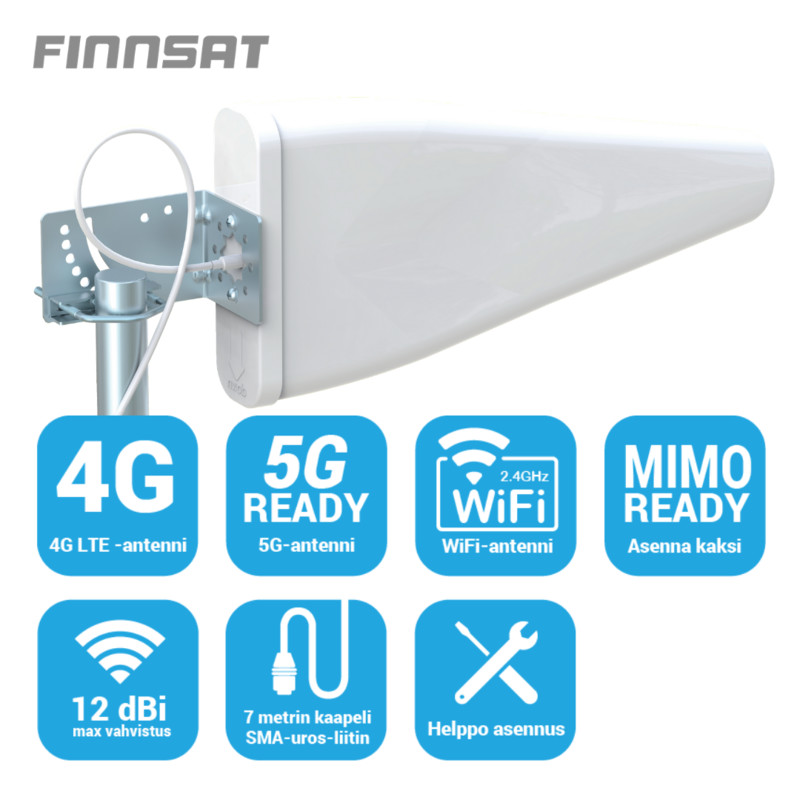

ANTENNA ANTENNA 3G/4G/5G/GSM, 11DBI

FS5000 is a log-periodic antenna designed for a wide frequency band. Its typical use is to enhance data communication and improve data transfer speed. The antenna features a fixed 7m low-loss cable with an SMA connector.

Better signal ensures a faster and more reliable internet connection at home and in the cabin.

It can be connected directly to the SMA port of a mobile router. By combining the FS5000 and FS1000 antennas, a passive repeater can be built to improve the mobile network coverage in the area.

Technical specifications:

• Frequency band: 698-960/1710-2700/3410-3800MHz
• VSWR: <1.5/1.5/2-3
• Input impedance: 50ohm
• Gain: 11/11/9dBi ±1dBi

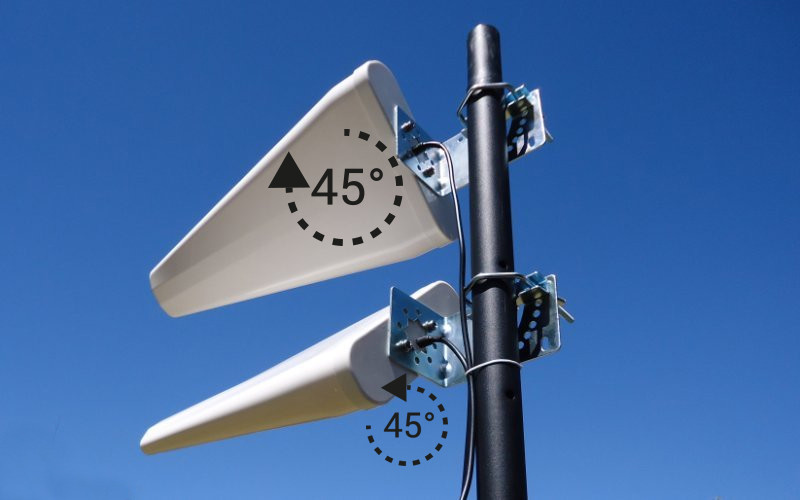

• Polarization: Vertical, horizontal, or +45/-45 MIMO
• Horizontal beamwidth: 60° ±8°/±55° 8°
• Vertical beamwidth: 50° ±5°/±45° 5°
• Front-to-back ratio: >21dB
• Max power: 100W
• Connector: SMA male
• Lightning protection: DC grounding

Mechanical specifications:

• Dimensions: 445×210×70mm
• Weight: 0.75kg
• Wind load: 45N @35m/s
• Antenna housing material: ABS plastic
• Cable: 7m
• Mounting pole diameter: 30-53mm

This product description is an automated translation of the original Finnish description.
