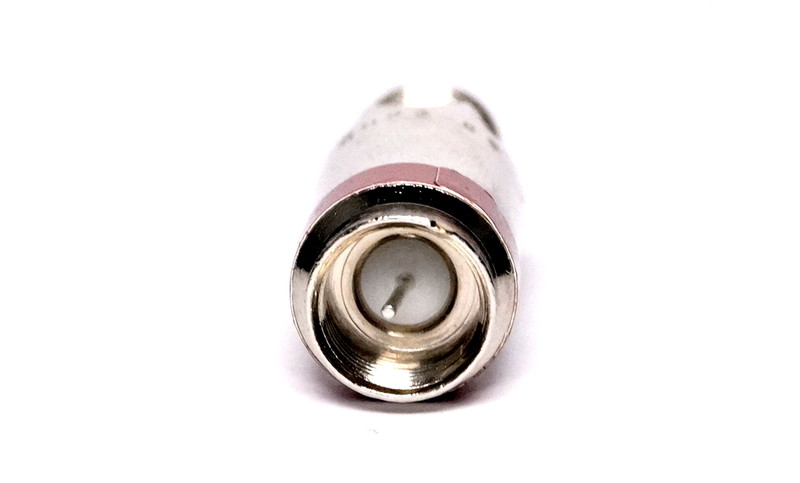

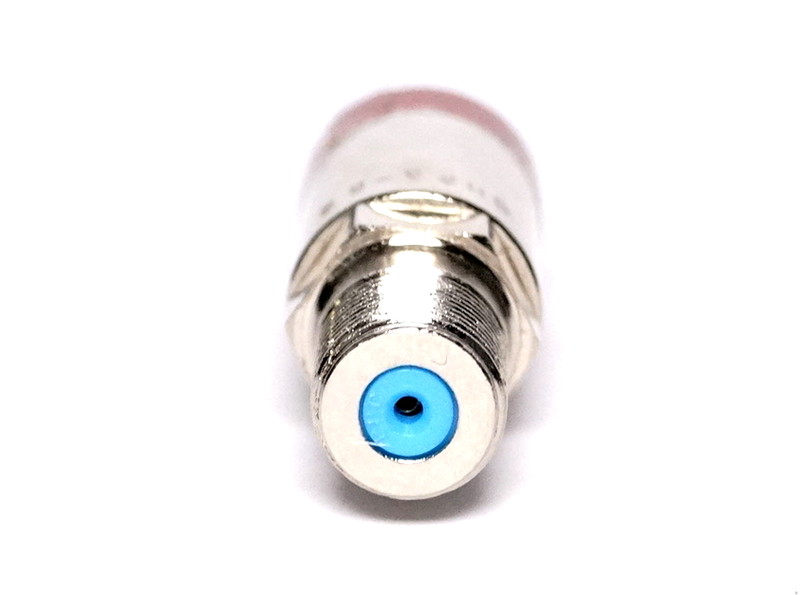

FILTER FILTER 86-862 MHZ

The return path blocker filter is used to prevent interference in DOCSIS cable modem networks.
The filter is typically installed at the antenna network's star point on one or more outputs to prevent noise in the 0-65 MHz return path from entering the amplifier. Noise interference disrupts or prevents the operation of DOCSIS cable modems throughout the entire house or even over a wider area. The blocker filter can confine the interference to a single output, allowing most of the house's modems to function. After installing the blocker filter, DOCSIS modems in the antenna points or cable chain on that output will no longer operate.
DOCSIS is a broadband internet connection operating over a cable TV network.

Technical specifications

• Blockage range 0-65 MHz, return path
• Passband 86-862 MHz, FM-E69
• Insertion loss <1dB
• Blockage attenuation >50dB
• F-connector, male/female
• Dimensions 30 x 10 x 10 mm

High-pass filter 65MHz This product description is an automated translation of the original Finnish description.
