FILTER FILTER ESTO LTE700 / @450
Product code
7550206

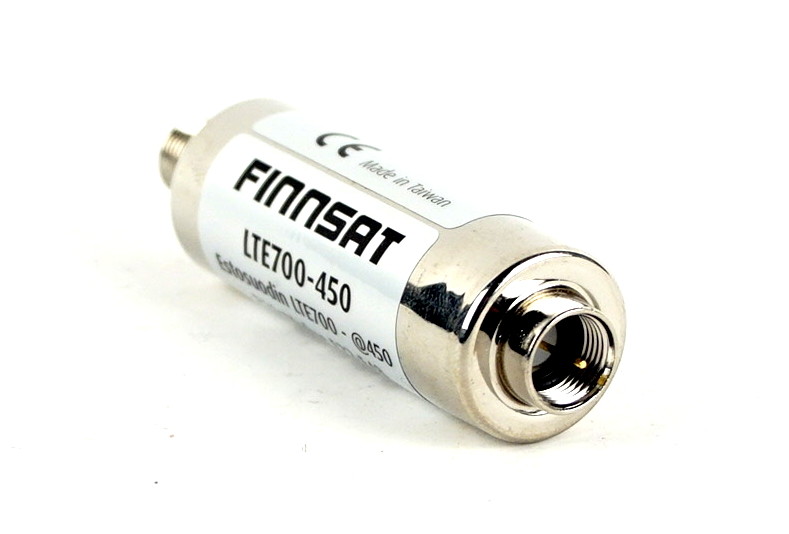

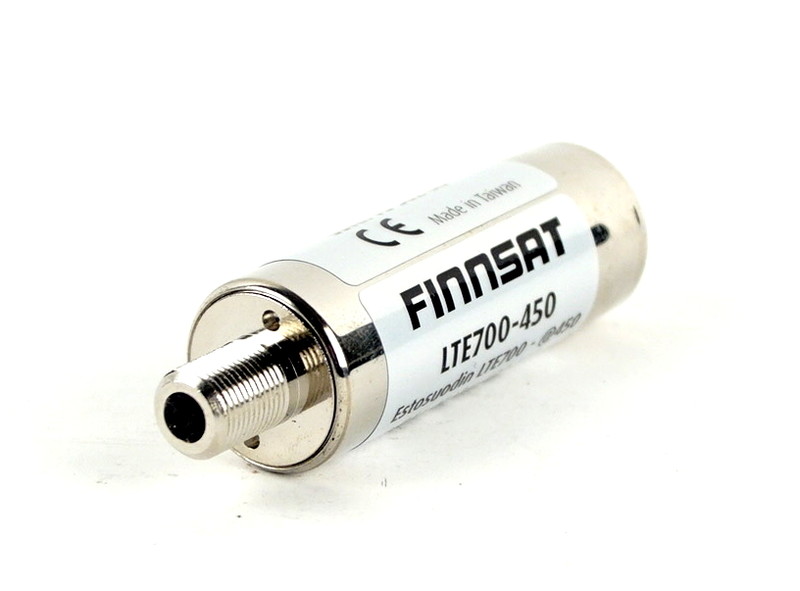

LTE700 and @450 bandstop filter
UHF pass filter for channels E22-48
Easy to install directly onto the antenna or amplifier input with F-connectors. Allow UHF band channels E22-48 to pass through while effectively blocking signals from outside the TV band from entering the amplifier. Prevents LTE interference and signals from transmitters below the UHF band, such as Virve and private network signals, which can cause interference in the amplifier.
UHF pass filter for channels E22-48
Easy to install directly onto the antenna or amplifier input with F-connectors. Allow UHF band channels E22-48 to pass through while effectively blocking signals from outside the TV band from entering the amplifier. Prevents LTE interference and signals from transmitters below the UHF band, such as Virve and private network signals, which can cause interference in the amplifier.

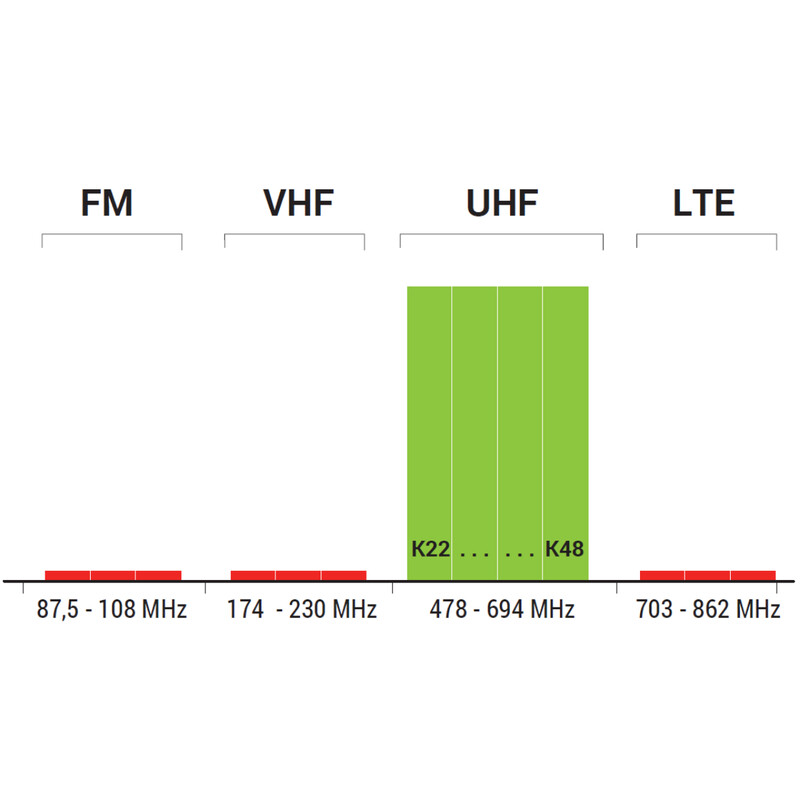

- Passband: 478-694 MHz (channels 22-48)
- Insertion loss: 1 dB
- Rejection attenuation: over 40 dB
- F-connectors, male/female
- Length: 70 mm
- Height: 20 mm
- Width: 20 mm
- Weight: 0.039 kg
Product details
Technical specifications
Product class (ETIM)Diplexer/filter (EC000420)
Connection typeF-bus
Number of outputs1
Number of inputs1
ModelTrap filter
Frequency5-1000 MHz
Product codes
SAPCKX693
STK7550206
PLC7550206
GTIN/EAN6418296120441
Manufacturer part numberLTE700-450
Vendor material numberLTE700-450
Basic information
Package measurements (L x W x H)82 x 40 x 68 mm
Package volume0.223 l
Package weight0.15 kg
Base uniteach
Package units1
Package contents–
UNSPSC43221702
BrandFINNSAT
VendorFINNSAT OY
