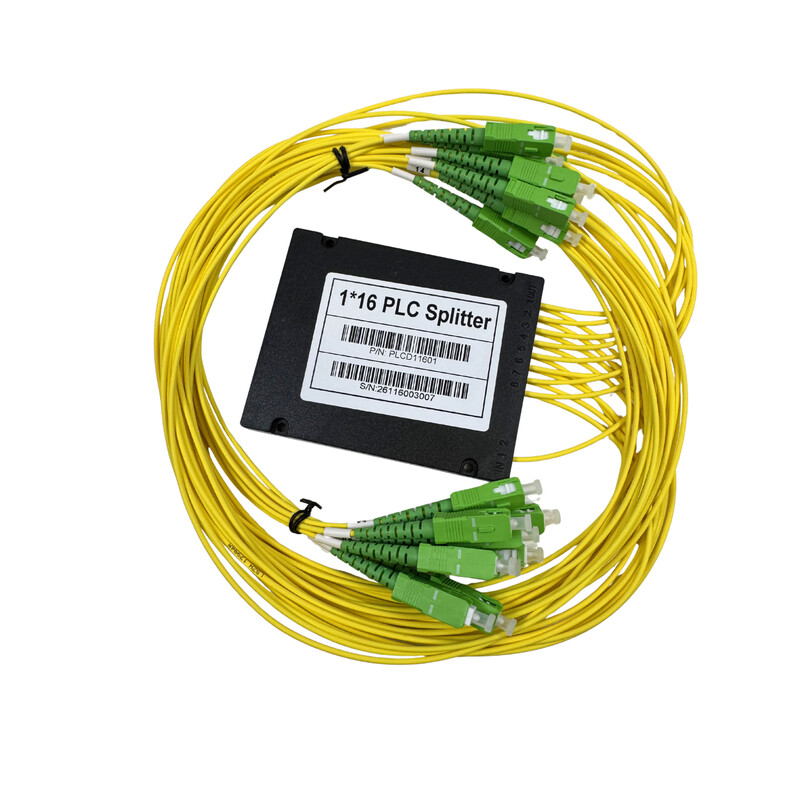

OPTICAL SPLITTER PLC 1 16 SC APC 13,5DB ABS
Product code
7550660
PLC (Planar Lightwave Circuit) fiber splitter 1x16 is a passive component that splits one optical signal into sixteen outputs with a symmetric splitting ratio.
The FKJ-16-SCAPC optical splitter is an excellent choice when you need sixteen SC/APC outputs from a single singlemode input, for example in a distribution hub, riser fiber, or small distribution point.
The SC/APC–SC/APC connector minimizes reflections and helps keep the link budget under control.
The durable ABS enclosure protects the splitter and facilitates neat installation in distribution hubs and enclosures.
It operates at common FTTH/PON wavelengths (1260–1650 nm) and withstands installation environment temperatures from -40 to +85 °C.
Features- 1x16 PLC splitting: one input, sixteen outputs
- SC/APC connectors
- Wide operating range 1260–1650 nm (FTTH/PON)
- Secure enclosure: durable ABS protection
- Operating temperature: -40 to +85 °C
Product details
Technical specifications
Product class (ETIM)Planar Lightwave Circuit (PLC) splitter (EC003870)
Type1x16
Operating wavelength1260 - 1650 nm
Mounting methodOther
Connector type inputSC/APC
Connector type outputSC/APC
Max. insertion loss13.5 dB
Min. return loss55 dB
Max. uniformity loss1.2 dB
Max. polarisation dependent loss (PDL)0.3 dB
Min. directivity55 dB
Operating temperature-25 - 70 °C
Height80 mm
Width120 mm
Depth18 mm
Product codes
SAPDQF544
STK7550660
PLC7550660
GTIN/EAN6418296003294
Manufacturer part numberFKJ-16-SCAPC
Vendor material numberFKJ-16-SCAPC
Basic information
Package measurements (L x W x H)219 x 270 x 40 mm
Package volume2.365 l
Package weight0.226 kg
Base uniteach
Package units1
Package contents–
UNSPSC43221702
BrandFINNSAT
VendorFINNSAT OY
