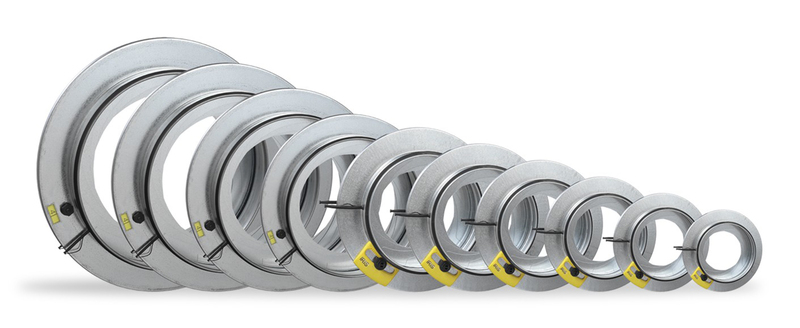

IRIS MEASUREMENT DAMPE R IRIS 100
Product code
8930002
The original damper developed and designed by Fläkt Woods, offering the best accuracy in its class and seamless settings.
- suited for accurate and rapid measurement and control of airflows
- consists of a housing, control blades, control nut or control handle (size 80), control scale, and measurement connection
- low noise level
- easy to adjust
- operation independent of airflow direction
- fully openable, easy duct cleaning
Product details
Technical specifications
Product class (ETIM)Iris valve (EC011275)
Nominal duct diameter100 mm
Diaphragm valve outer diameter165 mm
Product codes
SAPAAG514
HPAC8930002
PLC8930002
GTIN/EAN6417461006528
Manufacturer part numberIRIS-100
Vendor material number8930002
Basic information
Package measurements (L x W x H)155 x 155 x 115 mm
Package volume2.763 l
Package weight0.64 kg
Base uniteach
Package units1 / 15 / 196
Package contents–
UNSPSC40101504
BrandFLÄKTGROUP
VendorFLÄKTGROUP / PÄÄTELAITTEET
The country of origin stated by the supplierFinland
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Ecolabels
M1 Label
The product is low emission in accordance with M1 requirements
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0804
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000506
