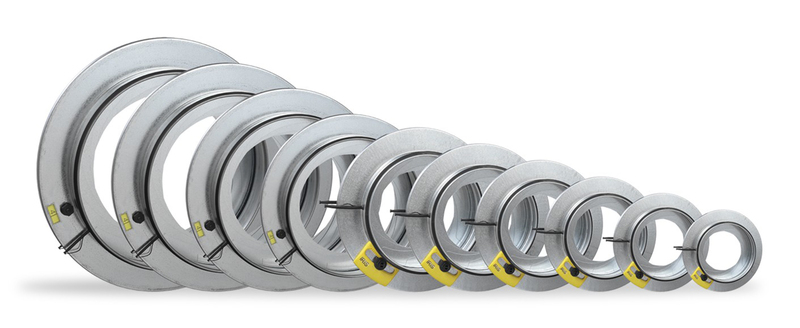

IRIS MEASUREMENT DAMPE R IRIS 160
Product code
8930006
The original damper developed and designed by Fläkt Woods, offering the best accuracy in its class and seamless settings.
- suited for accurate and rapid measurement and control of airflows
- consists of a housing, control blades, control nut or control handle (size 80), control scale, and measurement connection
- low noise level
- easy to adjust
- operation independent of airflow direction
- fully openable, easy duct cleaning
Product details
Technical specifications
Product class (ETIM)Iris valve (EC011275)
Nominal duct diameter160 mm
Diaphragm valve outer diameter230 mm
Product codes
SAPAAG516
HPAC8930006
PLC8930006
GTIN/EAN6417461006603
Manufacturer part numberIRIS-160
Vendor material number8930006
Basic information
Package measurements (L x W x H)230 x 230 x 115 mm
Package volume6.084 l
Package weight1.3 kg
Base uniteach
Package units1 / 6 / 105
Package contents–
UNSPSC40101504
BrandFLÄKTGROUP
VendorFLÄKTGROUP / PÄÄTELAITTEET
The country of origin stated by the supplierFinland
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Ecolabels
M1 Label
The product is low emission in accordance with M1 requirements
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1634
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000506
