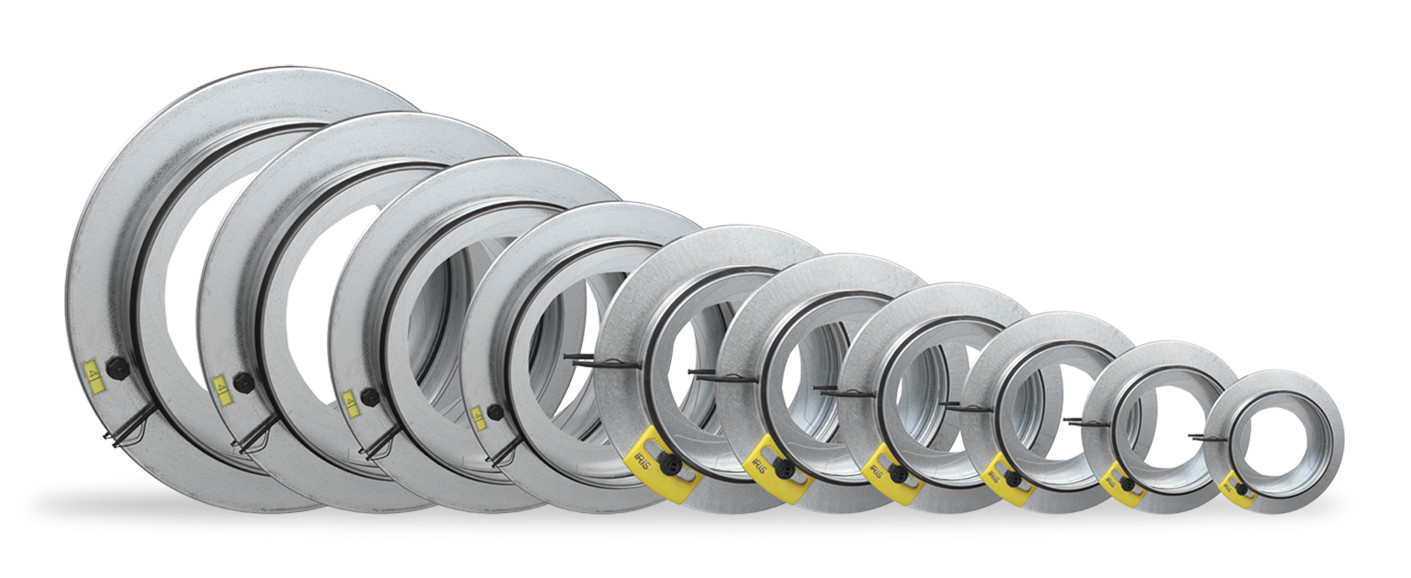

IRIS MEASUREMENT DAMPE R IRIS 400
Product code
8930014
The original damper developed and designed by Fläkt Woods, offering the best accuracy in its class and seamless settings.
- suited for accurate and rapid measurement and control of airflows
- consists of a housing, control blades, control nut or control handle (size 80), control scale, and measurement connection
- low noise level
- easy to adjust
- operation independent of airflow direction
- fully openable, easy duct cleaning
Product details

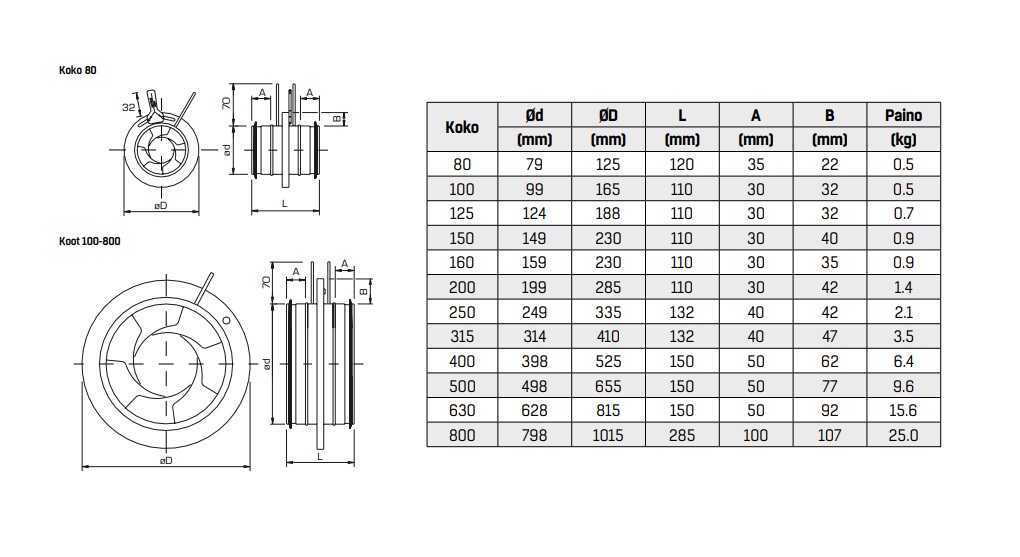

Technical specifications
Product class (ETIM)Iris valve (EC011275)
Nominal duct diameter400 mm
Diaphragm valve outer diameter525 mm
Product codes
SAPAAG520
HPAC8930014
PLC8930014
GTIN/EAN6417461006825
Manufacturer part numberIRIS-400
Vendor material number8930014
Basic information
Package measurements (L x W x H)520 x 520 x 165 mm
Package volume44.616 l
Package weight6.4 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC40101504
BrandFLÄKTGROUP
VendorFLÄKTGROUP / PÄÄTELAITTEET
The country of origin stated by the supplierFinland
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Ecolabels
M1 Label
The product is low emission in accordance with M1 requirements
