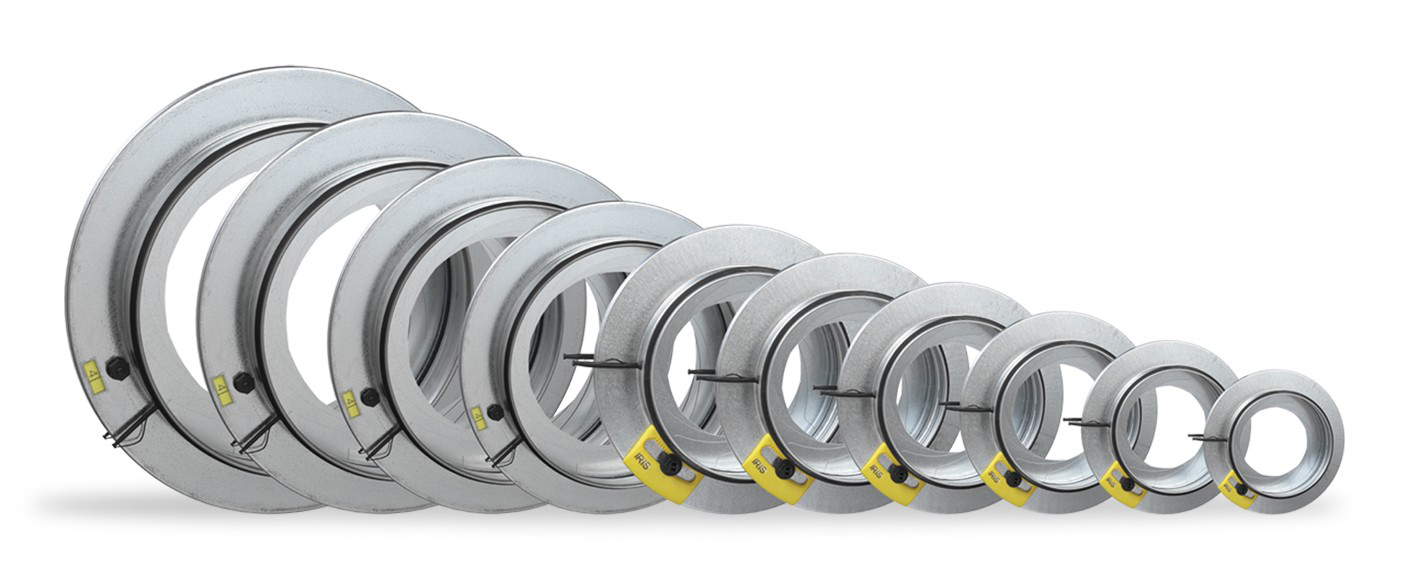

IRIS MEASUREMENT DAMPER IRIS 630
Product code
8930018
The original damper developed and designed by Fläkt Woods, offering the best accuracy in its class and seamless settings.
- suited for accurate and rapid measurement and control of airflows
- consists of a housing, control blades, control nut or control handle (size 80), control scale, and measurement connection
- low noise level
- easy to adjust
- operation independent of airflow direction
- fully openable, easy duct cleaning
Product details
Technical specifications
Product class (ETIM)Iris valve (EC011275)

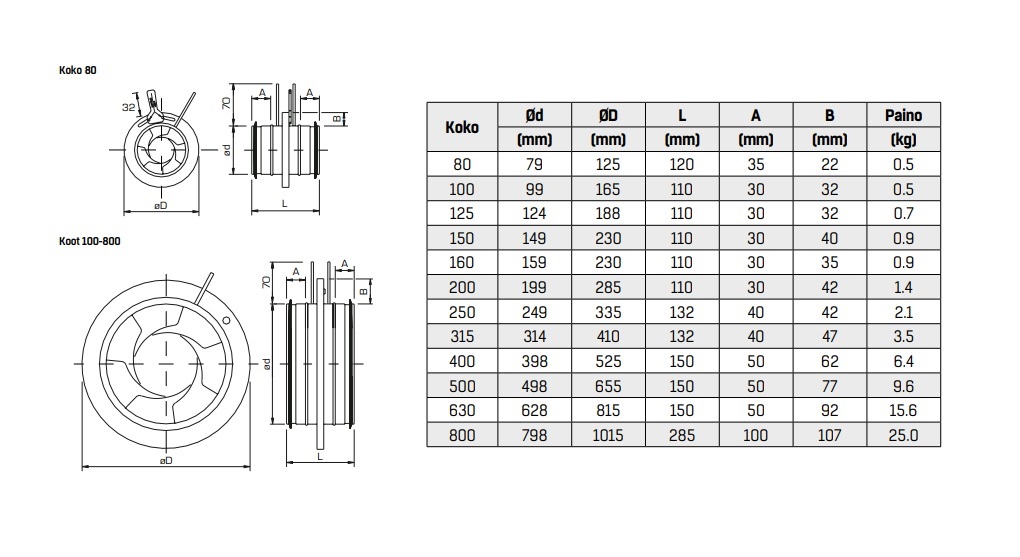

Nominal duct diameter630 mm
Diaphragm valve outer diameter815 mm
Product codes
SAPAAO599
HPAC8930018
PLC8930018
GTIN/EAN6417461006863
Manufacturer part numberIRIS 630
Vendor material number8930018
Basic information
Package measurements (L x W x H)820 x 820 x 155 mm
Package volume104.222 l
Package weight15.5 kg
Base uniteach
Package units1 / 7
Package contents–
UNSPSC40101504
BrandFLÄKTGROUP
VendorFLÄKTGROUP / PÄÄTELAITTEET
The country of origin stated by the supplierFinland
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Ecolabels
M1 Label
The product is low emission in accordance with M1 requirements
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.9483
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000506
