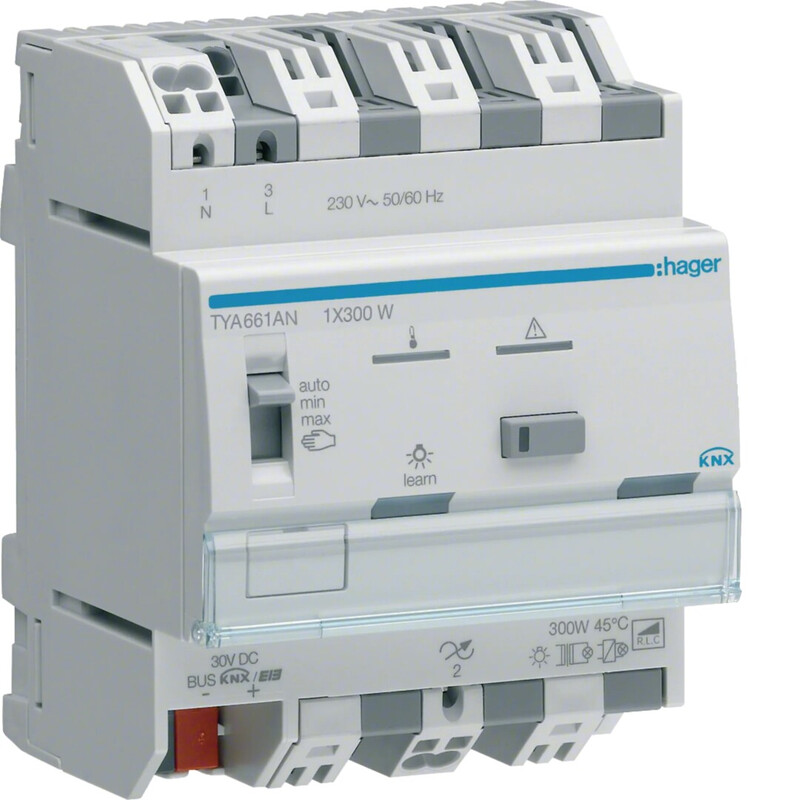

DIMMER KNX TYA661AN 1X300W RLCPD T DIN

General lighting control unit 1-channel DIN 300 W Operating voltage over bus 21 ... 32 VDC Auxiliary voltage 230 VAC Frequency 50/60 Hz Dimmable 230 V LED lamps 60 W Number of dimmable 230 V LED lamps max. 8 Dimmable low-voltage lamps 60 W Number of low-voltage lamps max. 8 230 V incandescent and halogen lamps 300 W Dimmable conventional transformers 300 VA Electronic transformers 300 W Operating temperature -5 ... +45 °C Conductor cross-section (wire) 0.75 ... 2.5 mm² Conductor cross-section (stranded) 0.75 ... 2.5 mm² Dimensions (L x W x H) 70 x 90 x 65 mm Module size DIN 4 mod. Do not connect conventional transformers together with electronic transformers. - Learning function for optimized operation of low-voltage lamps and LED light sources can be activated via the bus - Manual operation can be activated via a selector switch that deactivates KNX functionality - Manual operation also possible without bus e.g. on construction sites - Manual operation per channel using button (individual area control) - Load definition possible per channel using device button - Phase cut rising or falling edge according to load type, self-learning - Minimum/maximum dimming values adjustable per channel via device - Status indication LED integrated into manual operation button - Overtemperature protection, display via LED - Overload protection, display via LED - Illuminated programming button - Selector switch for manual/bus operation as well as load setting - Integrated bus coupling unit - Bus connection via terminal connector - QuickConnect spring terminals - Large label window This product description is an automated translation of the original Finnish description.
