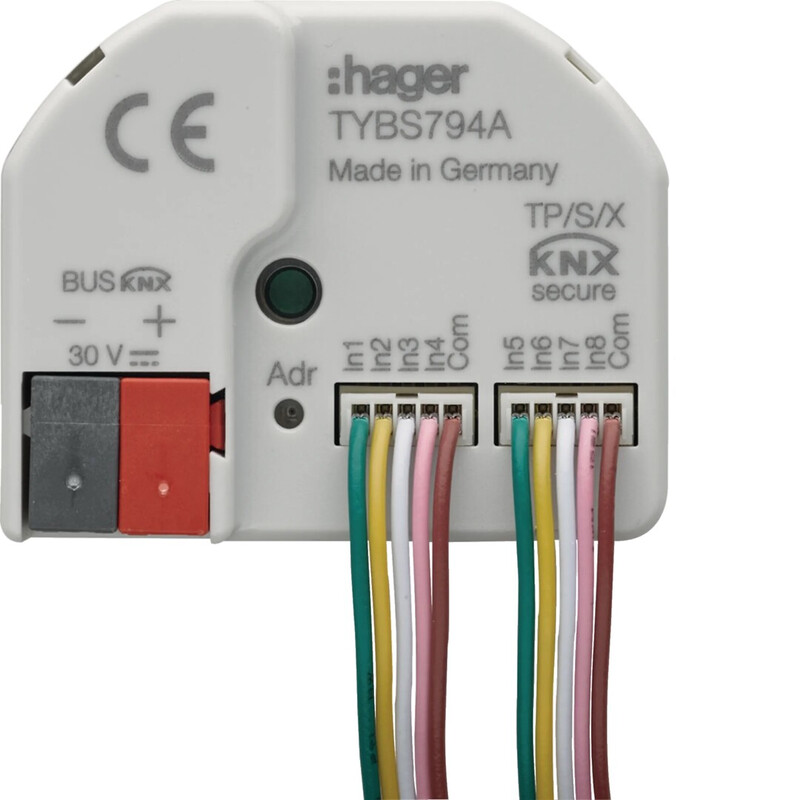

INPUT MODULE KNX TYBS794A 4PF+4LED-OUT. FLUSHM.

Binary input 4-channel with 4 LED outputs (recessed mounting) for connecting buttons, switches, or potential-free contacts to a KNX system via KNX Secure button connection. Device designed for recessed mounting in a junction or distribution box with integrated bus interface, connected to the bus via a KNX connection connector. Programming button with LED and pre-wired cables for button connection. Functions: ON/OFF (sends commands when pressed and/or released, delayed transmission possible), dimming and color temperature, UP/DOWN (using 1 or 2 buttons), transmitter for temperature, brightness, dimming value, two-channel state per input, detection and parameterization of short and long button presses, transmission behavior and time threshold values can be set. Locking function, forced control, state restoration, and periodic transmission can be parameterized, pulse counting and temperature measurement. This product description is an automated translation of the original Finnish description.
