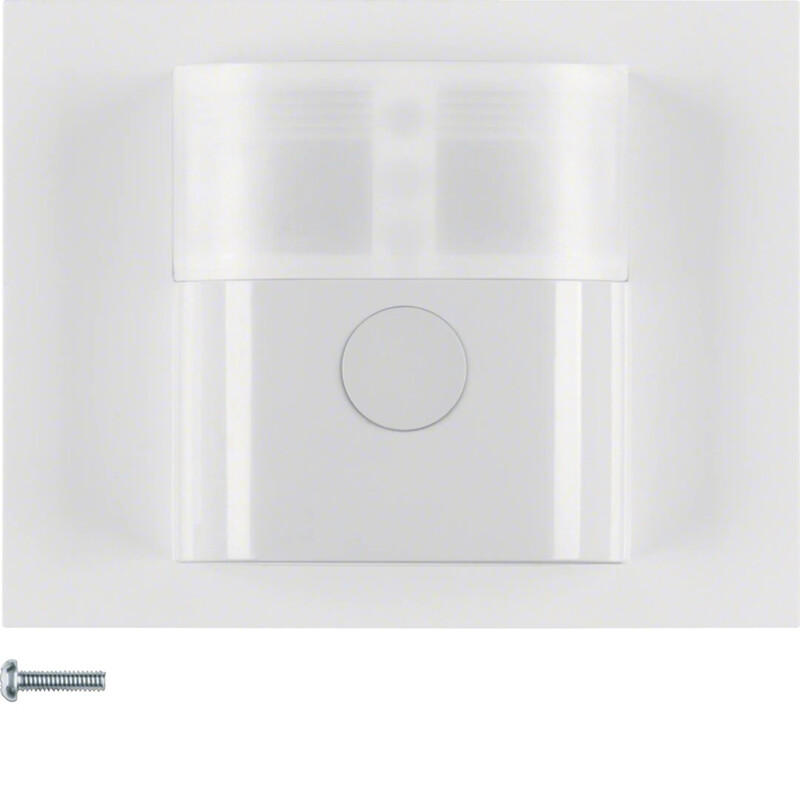

MOTION DETECTOR RF K.1 180° 1.1M IP20 COMFORT WHITE

Motion detector with additional functions, compatible with zero-line device housings featuring 1.1 m wireless transmitter and receiver functionality for Quicklink radio installations. Can also be integrated into a twisted-pair KNX system with the media coupler TR131A. Number of radio channels: 1 Radio transmission frequency: 868.3 MHz Radio transmission power: < 10 mW Radio protocol: KNX Radio Maximum number of Quicklink links: 20 transmitters/receivers Radio transmission range (inside building): max. 30 m Radio transmission range (open field): max. 100 m Transmission duty cycle: 1 % Receiver class: 2 Default mounting height: 1.1 m Detection area, front: approx. 12 m Detection area, side: each approx. 8 m Detection area, rectangular: approx. 12 x 16 m Delay time, adjustable: approx. 1 s ... 3 h Response brightness, adjustable: approx. 5 ... 1000 lx, ∞ lx (day) Detection sensitivity, adjustable: approx. 10 ... 100 % Operating temperature: -5 ... +45 °C Cover height from surface: 34 mm NOTE! Continuous direct sunlight onto the upward-facing detection surface may cause malfunction of the motion detector. Suitable for indoor use only! - Naturally low energy consumption - Memory function for presence simulation - Celebration function to switch on for 2 hours - Teaching function via button for brightness threshold - Button lock - Zero function (factory settings) - Pre-warning of disconnection in lighting control housings - Quicklink functions: switching, dimming, 2 states, time switching, closing contact button, priority, Master-Slave - ETS additional functions: +6 states, operating state on/off, button, state indication, dimming value, brightness value display, state call based on motion/no motion - Remote control via Quicklink transmitter - State opening via KNX radio devices - State storage lockable - LED display for compatibility of application module/housing - Operating and state indication LED, red/green/orange - Teaching and operation LEDs - Microprocessor-controlled operating mode - Optional use of expansion units - With teaching and operation button - Buttons for functions: on/off/auto/memory/celebration - Detachable protection with separate screw - Connection to KNX twisted-pair system using KNX radio media coupler This product description is an automated translation of the original Finnish description.
