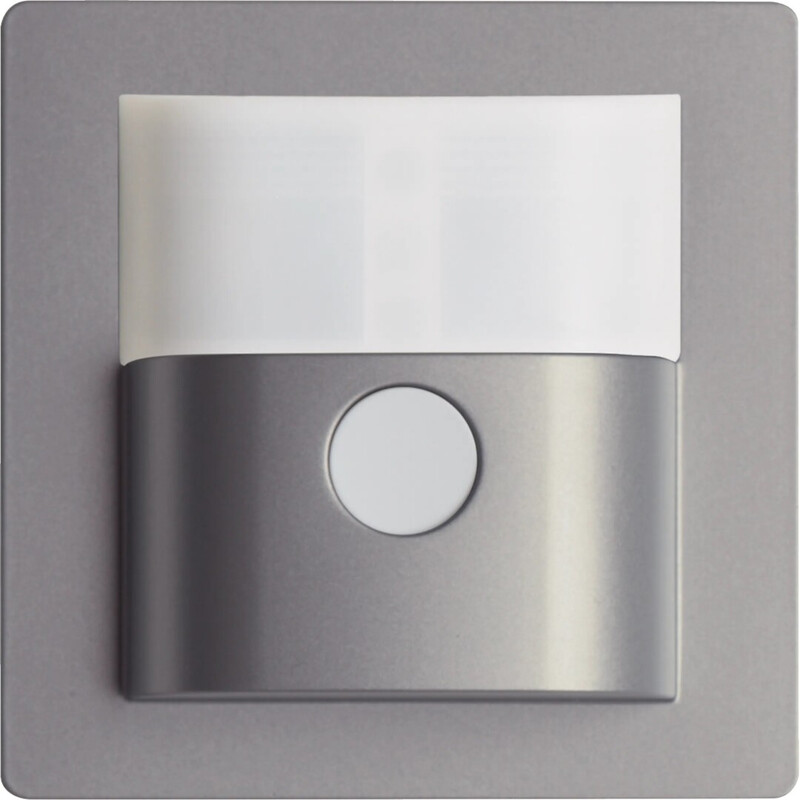

RADIO MOTION DETECTOR KNX 180° 2.2M RF QUICKLINK ALU

Motion sensor head with additional functions, compatible with zero-line device housings and wireless transmitter/receiver functionality for Quicklink installations. Can also be integrated into a twisted-pair KNX system with the media coupler TR131A. Number of radio channels: 1 Radio transmission frequency: 868.3 MHz Radio transmission power: < 10 mW Radio protocol: KNX Radio Maximum number of Quicklink links: 20 transmitters/receivers Radio transmission range (inside building): max. 30 m Radio transmission range (open field): max. 100 m Transmission duty cycle: 1 % Receiver class: 2 Default mounting height: 1.1 m Detection area, front: ? 12 m Detection area, side: each ? 8 m Detection area, rectangular: 12 x 16 m Delay time, adjustable: 1 s ... 3 h Response illuminance, adjustable: 5 ... 1000 lx, ? lx (day) Detection sensitivity, adjustable: 10 ... 100 % Operating temperature: -5 ... +45 °C Cover height from surface: 34 mm NOTE! Continuous direct sunlight onto the upward-facing detection surface may cause the motion sensor to malfunction. Suitable for indoor use only! ? Naturally low energy consumption ? Memory function for presence simulation ? Celebration function to switch on for 2 hours ? Teaching function via button for illuminance threshold ? Button lock ? Zero function (factory settings) ? Pre-warning of disconnection in lighting control housings ? Quicklink functions: switching, dimming, 2 states, time switching, closing contact button, priority, Master-Slave ? ETS additional functions: +6 states, operating state on/off, button, state indication, dimming value, illuminance display, state call based on motion/no motion ? Remote control via Quicklink transmitter ? State activation via KNX radio devices ? State storage lockable ? LED display for compatibility of application module/housing ? Operating and state indication LED, red/green/orange ? Teaching and operation LEDs ? Microprocessor-controlled operating mode ? Optional use of expansion units ? With teaching and operation button ? Buttons for functions: on/off/auto/memory/celebration ? Detachable protection with separate screw ? Connection to KNX twisted-pair system using KNX radio media coupler This product description is an automated translation of the original Finnish description.
