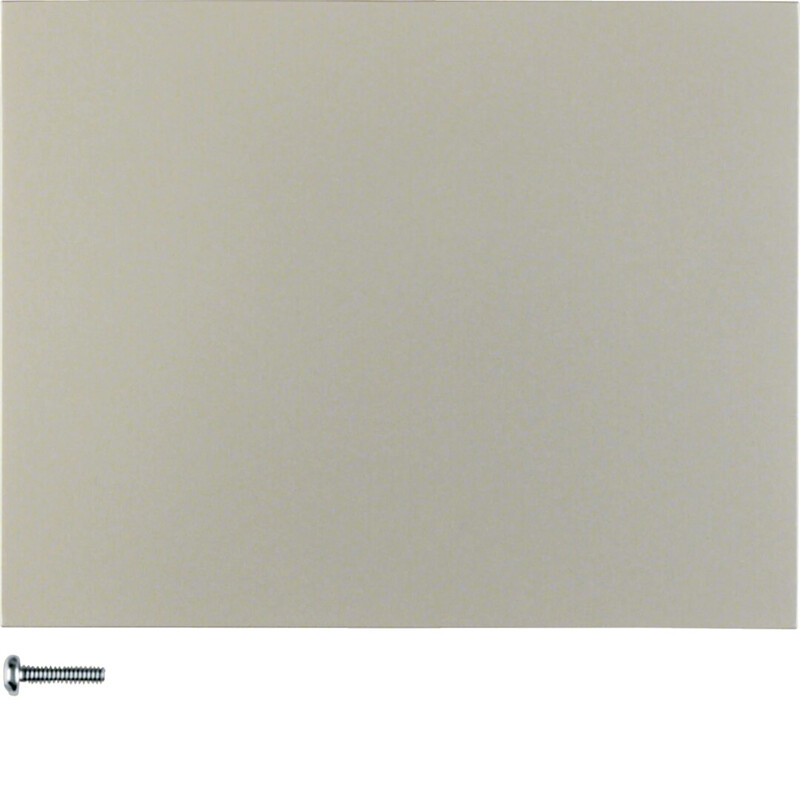

RADIO PUSH BUTTON KNX K.5 1-FOLD F. SWITCH/DIMMER RST

KNX radio button 1-part quicklink Number of radio channels 2 Radio transmission/reception frequency 868.3 MHz Radio transmission power < 10 mW Radio protocol KNX Radio Maximum number of quicklink links: 20 transmitters/receivers Radio transmission range (inside building) max. 30 m Radio transmission range (open field) max. 100 m Transmission duty cycle 1 % Receiver class 2 Operating temperature -5 ... +45 °C For manual or remote control via quicklink radio control - Naturally low energy requirement - Transmitter and/or receiver behavior definable - Zero function (factory settings) - Quicklink functions: switching, dimming, shading, 2 states, switch-off delay, button, closing contact - ETS additional functions: +6 states, 1 button control up/down, operating state on/off, dimming value, brightness display, button, state indication, forced control, priority - Operating areas can be defined for single or dual area operation - State storage lockable - LED display for application module/housing compatibility - Learning and operating LEDs - Switch-on brightness level definable for each operating area with light controller housing, voltage-independent, storeable - Upper and lower operating areas freely adjustable in 1-channel switching/dimming housing and network supply housing - Tool-free quicklink learning using buttons and LED display - Learning and operating button - Detachable protection with separate screw - Connection to KNX twisted pair system using KNX radio media coupler Compatible housings: Power supply for KNX radio application module 8502 01 00 DALI/DSI controller housing 8542 17 00 .. 1-channel switching housing 8512 11 00 Relay housing 8512 12 00 Push-button light controller (R, L) 8542 11 00 General push-button light controller 1-channel 8542 12 00 This product description is an automated translation of the original Finnish description.
