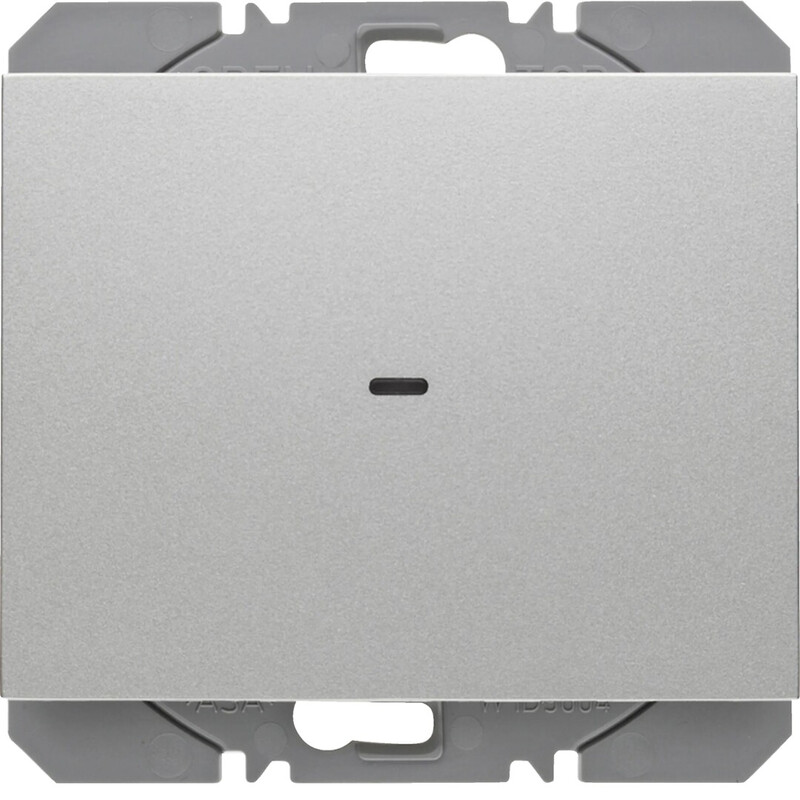

RADIO PUSH BUTTON KNX K.5 1F BAT 3V QUICKLINK AN-AL

Radio button surface-mounted single-piece flat quicklink Operating voltage 3 VDC Number of radio channels 2 Radio transmission frequency 868.3 MHz Radio transmission power < 10 mW Radio protocol KNX Number of radio quicklink connections max. 20 transmitters/receivers Radio transmission range (inside building) max. 30 m Radio transmission range (free field) max. 100 m Transmission duty cycle 1 % Receiver class 2 Battery life [years] ≈ 5 Operating temperature -5 ... +45 °C Cover height from surface 14 mm Radio remote control for all defined quicklink radio receivers. - Zero function (factory settings) - Quicklink functions: switching, dimming, shading, 2 states, switch-off delay, button, closing contact - ETS additional functions: +6 states, operation mode on/off, button, state indication, dimming value - Operating areas can be defined for single- or dual-area operation - With learning LED - With transmission and battery status LED, red/green/orange - Upper and lower operating areas are freely configurable - Tool-free quicklink learning using buttons and LED display - With learning button - Detachable protection with separate screw - Lithium coin cell 3 V type: CR 2430 - Connection to KNX power line system using KNX radio medium coupler - For flat surface mounting and expansion of combinations This product description is an automated translation of the original Finnish description.
