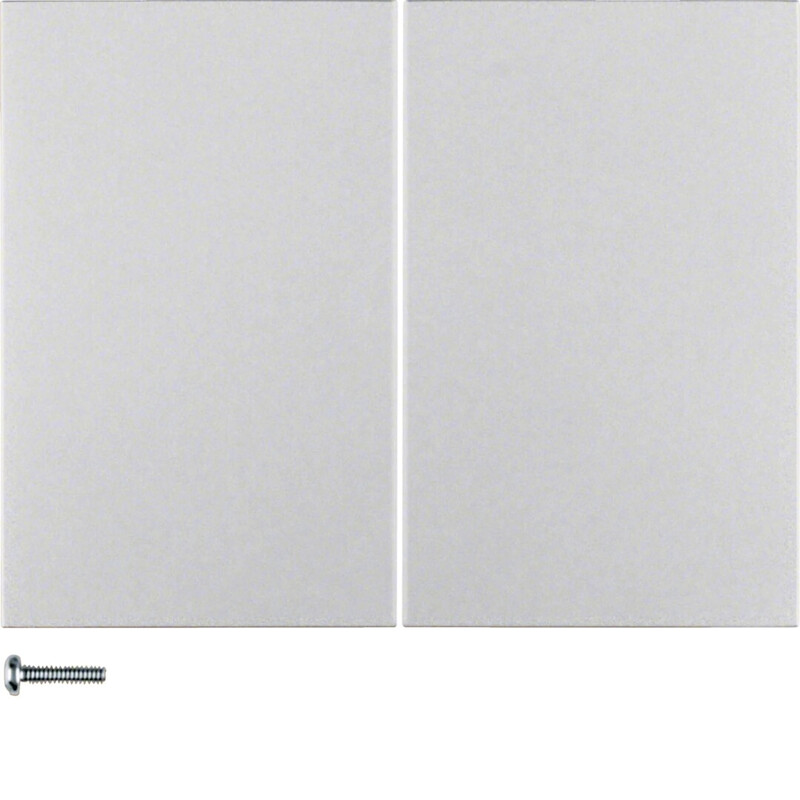

RADIO PUSH BUTTON KNX K.5 2-FOLD F. SWITCH/DIMMER AN-AL

KNX radio button, 2-part quicklink Number of radio channels: 4 Radio transmission/reception frequency: 868.3 MHz Radio transmission power: < 10 mW Radio protocol: KNX Radio Maximum number of Quicklink links: 20 transmitters/receivers Radio transmission range (inside building): max. 30 m Radio transmission range (free field): max. 100 m Transmission duty cycle: 1 % Receiver class: 2 Operating temperature: -5 ... +45 °C For manual or remote control via KNX radio - Naturally low energy requirement - Transmitter and/or receiver behavior definable - Zero function (factory settings) - Quicklink functions: switching, dimming, shading, 2 states, switch-off delay, button, closing contact - ETS additional functions: +6 states, 1 button control up/down, operating state on/off, dimming value, brightness display, button, state indication, forced control, priority - Operating areas can be defined for single- or dual-area use - State storage lockable - LED display for compatibility of application module/housing - Learning and operating LEDs - Switch-on brightness level definable for each operating area via light controller housing, voltage-independent, storeable - Upper and lower operating areas freely adjustable in 2-part switching/dimming housing and network supply housing - Tool-free Quicklink learning using buttons and LED display - Learning and operating button - Detachment protection with separate screw - Connection to KNX twisted pair system using KNX radio media coupler This product description is an automated translation of the original Finnish description.
