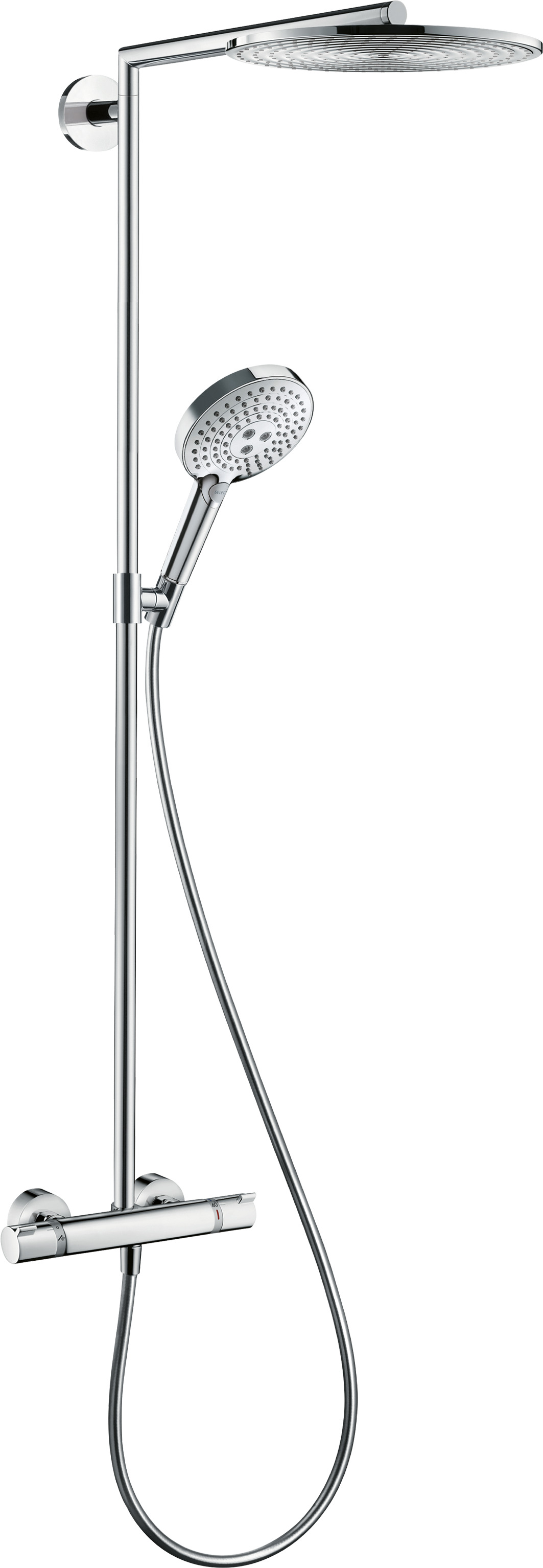

SHOWERSYSTEM HANSGROHE 27858000 RAINDANCE S300 AIR
Product code
6350944
- includes: overhead shower, hand shower, thermostatic shower valve, shower hose, slide
- overhead shower Raindance S 300 Air
- shower size: 300 mm
- shower modes: RainAir
- shower arm length: 460 mm
- height-adjustable hand shower holder

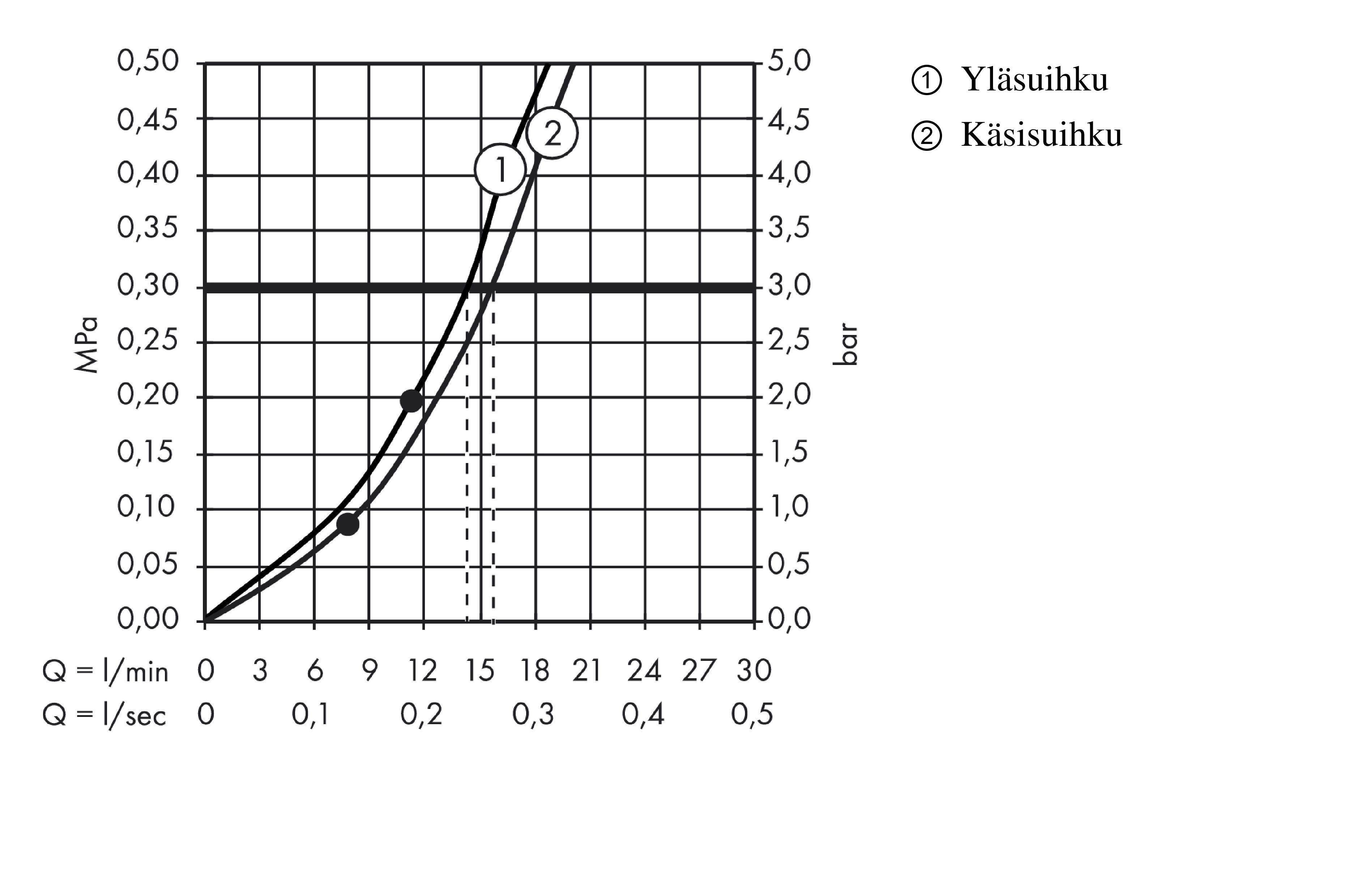

- maximum flow rate at 3 bar: 16 l/min
- swivel shower arm
- thermostat Ecostat Comfort
- safety stop at 40°C
- adjustable hot water limiter
- installation method: wall mounting
- connection size DN15
- connection thread G 1
- wall mounting 150 mm ± 12 mm
- vertical pipe can be shortened to suitable length
- 0.2 l/s at 175 kPa (overhead shower); 0.2 l/s at 200 kPa (hand shower)
- Note! If compression fittings are used during installation, the elevation piece for the Showerpipe upper mounting #98681000 must be ordered separately
- thermostat STF-type approval EUFI29-20001674-TH4
Product details
Technical specifications
Product class (ETIM)Shower column/panel (EC011613)
With head showeryes
With hand showeryes
With side showersno
Basic colourChrome
Height1100 mm
Width115 mm
Product codes
SAPCJT472
HPAC6350944
PLC6350944
GTIN/EAN4059625295076
Manufacturer part number27858000
Vendor material number27858000
Basic information
Package measurements (L x W x H)1100 x 365 x 115 mm
Package volume46.173 l
Package weight7.5 kg
Base uniteach
Package units1 / 4 / 14
Package contents–
UNSPSC30181702
BrandHANSGROHE
VendorHANSGROHE AG
Documents (8)
Brochures & documents
Links
Environment and safety
Sustainability categories
Circular economy
Features
Flow rate at 3 bar (l/min)16
Spare parts availability (years)15
Type ApprovalYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)17.8306
GWP, uniteach
Source for GWP dataEPD
