FLOODLIGHT SCOUT G2 IP66 1560LM-4250LM 30W 840
Product code
4528808
Technical specifications
- 4000 K Asym
- DIP-Power 10W/ 20W/ 30W
- 1560-4250 lm
- 80° x 150° beam angle
- IP66
- IK08

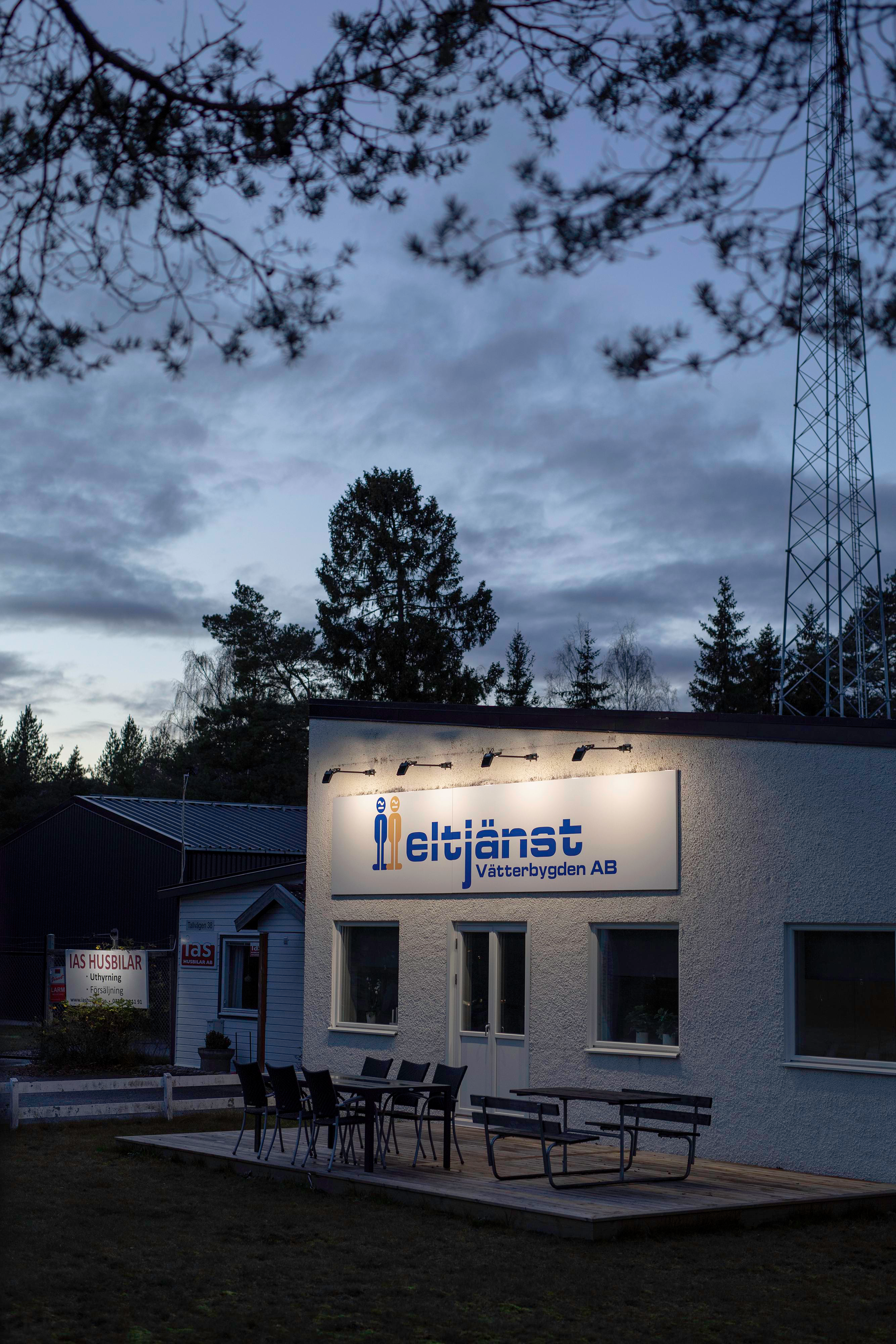

Scout G2 Sign is the perfect lighting solution for fast and easy installation and provides a mounting box and luminaire together. Facilitates the illumination of signs and facades. The Scout G2 Sign 50 XS luminaire allows easy power adjustment via the DIP-Switch Power feature.

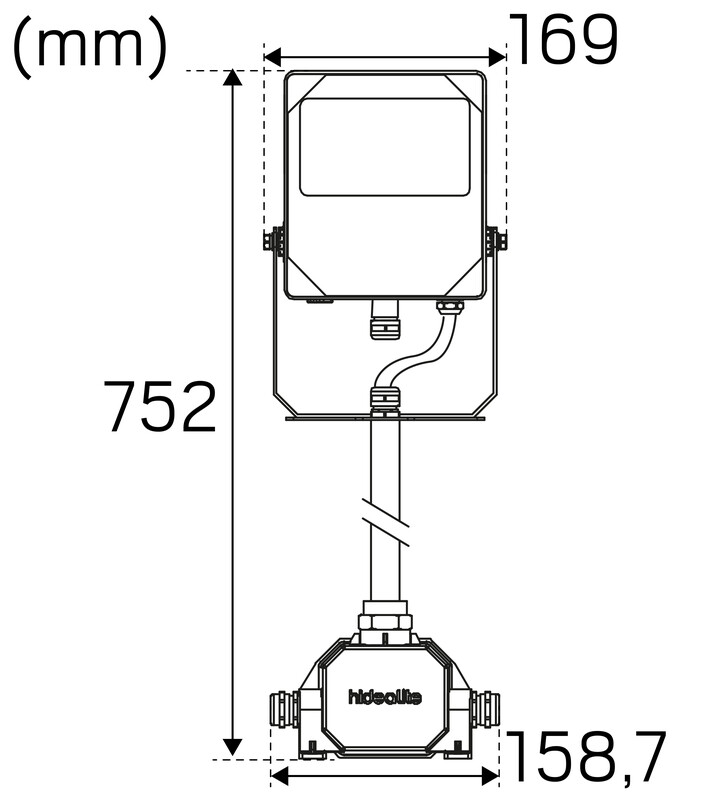

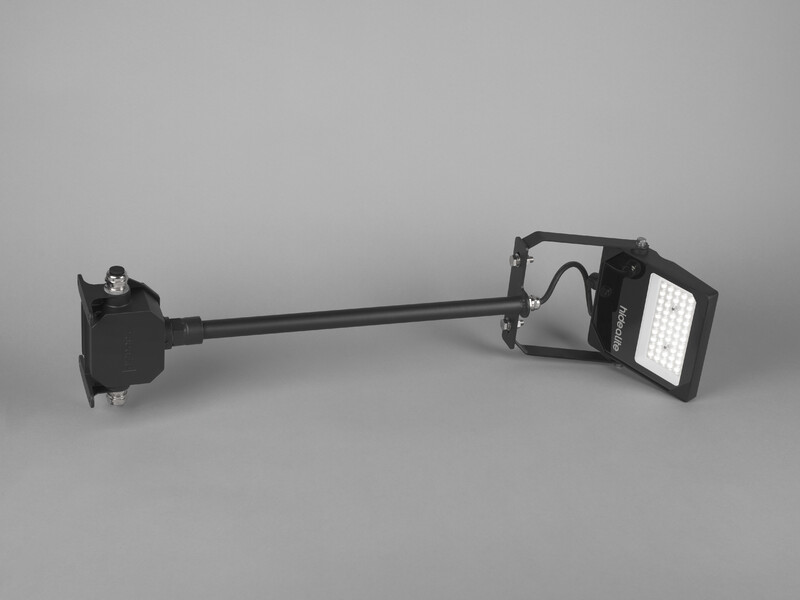

The luminaire comes with a 0.5 m arm containing a connection box and removable connectors. The luminaire and arm can also be mounted onto a mounting plate for additional stability.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceyes
Product codes
SAPCZL599
STK4528808
PLC4528808
GTIN/EAN7392971146157
Manufacturer part number7768006
Vendor material number4528808
Basic information
Package measurements (L x W x H)178 x 97 x 773 mm
Package volume13.347 l
Package weight3.46 kg
Base uniteach
Package units1 / 4
Package contents–
UNSPSC39111611
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND
Documents (13)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)44.98
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameOEM Finland OY
Postal addressFiskarsinkatu 3, 20750 Turku
