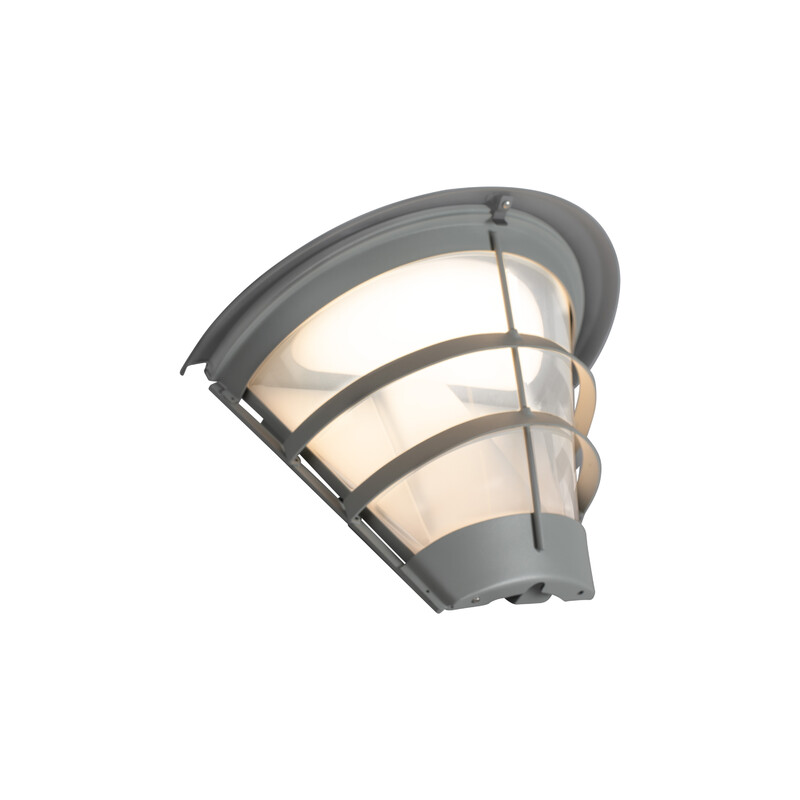

OUTD. WALL LUM. PAVE WALL TOP DECO II P65 IK10 1680LM GR

Product code
4528859

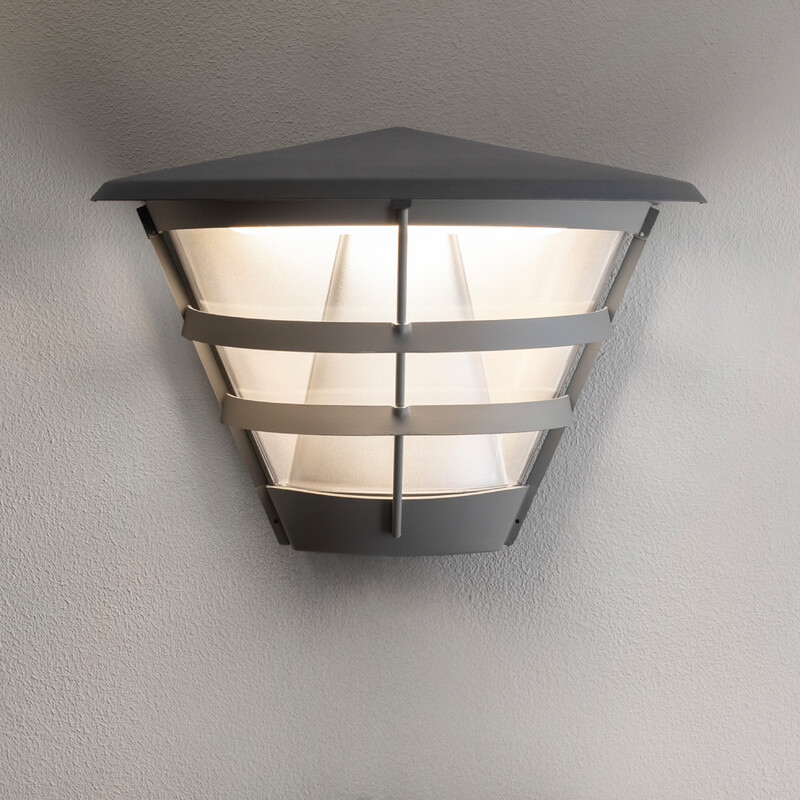

The new Pave product family features an easy-to-install wall light with a stylish design. The light is available with both clear and frosted glass. Choose the appearance and combine different versions: Top, Deco II, and Deco IV. The light's wide beam pattern elegantly illuminates the façade. Ample space is provided for easy installation. Replaceable LED and driver. Optional color temperature. Luminous flux can be selected via DIP switches. The back housing features double knockouts for easy chaining. Number plate available as an accessory for entrances (numbers 3x 0-9 and letters 3x A-J). This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for built-in mountingno
Suitable for surface mountingyes
Lamp typeLED exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialAluminium
Surface protection housingPowder coating
Housing colourGrey
Material coverPlastic, transparent
Voltage typeAC
Nominal voltage220-240 V
Nominal current90-500 mA
Type of control gearLED operating device current-controlled

Product codes

SAPDAX331
STK4528859
PLC4528859
GTIN/EAN7392971147383
Manufacturer part number7706032
Vendor material number4528859

Basic information

Package measurements (L x W x H)256 x 366 x 220 mm
Package volume20.613 l
Package weight4.13 kg
Base uniteach
Package units1 / 45
Package contents
UNSPSC39111605
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)53.69
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameOEM Finland OY
Postal addressFiskarsinkatu 3, 20750 Turku
