OUTDOORS WALL LUMINAIRE PIXO IP65 1900LM 22W 2/3/4K GR DIM
Product code
4528883

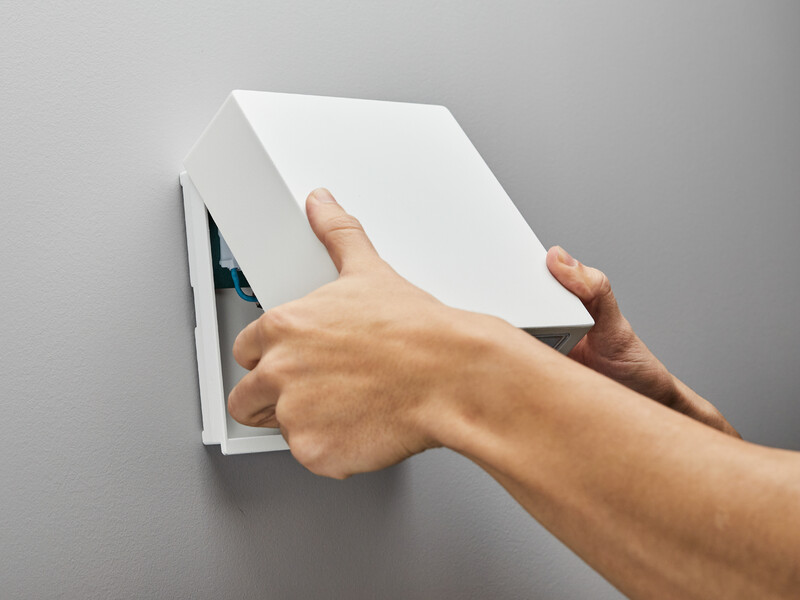

Pixo is not just a facade light; it is a style icon—the ultimate lighting solution for indoor and outdoor use in private and public spaces. It not only illuminates the facade but also lets your taste shine. Easily installed dimmable light available in two sizes, directly connected to 230V. Separate back plate and integrated mounting frame on the body, with cable entries enabling surface mounting.
The luminaire features interchangeable LED, driver, and optional color temperature. Light output can be selected via DIP switches. Pixo is structurally IP65 protected, IK10 rated, and durable powder-coated to withstand demanding outdoor climates. With decorative covers and other accessories, you can reduce glare, alter the appearance, and create a unique style that complements your facade.
Note! The brass-colored decorative cover is for indoor use only. Decorative covers can be painted upon order in a custom color.
Pixo S II gray
- 2700K/3000K/4000K
- 540-1900 lm
- 6.5-22 W
- 2 x 90° beam angle
- IP65
- IK10
- phase-dimmable driver
- L70 100 000h
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED exchangeable
With light sourceyes
Suitable for number of light sources2
Lamp holderOther
Housing materialAluminium
Surface protection housingPowder coating
Housing colourGrey
Material coverPlastic, opal
Product codes
SAPDCL362
STK4528883
PLC4528883
GTIN/EAN7392971149080
Manufacturer part number7706232
Vendor material number4528883
Basic information

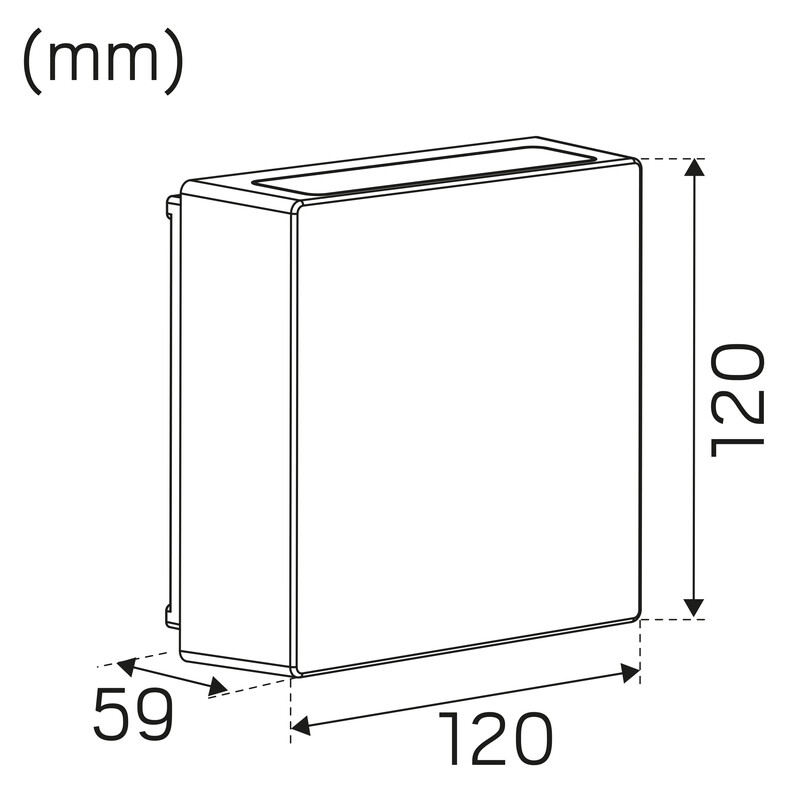

Package measurements (L x W x H)150 x 160 x 68 mm
Package volume1.632 l
Package weight0.8 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39111605
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND
Documents (11)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)10.4
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameOEM Finland OY
Postal addressFiskarsinkatu 3, 20750 Turku
