POLE MOUNT. PAVE POST IP65 IK10 3030LM 3K/4K GR
Product code
4528837

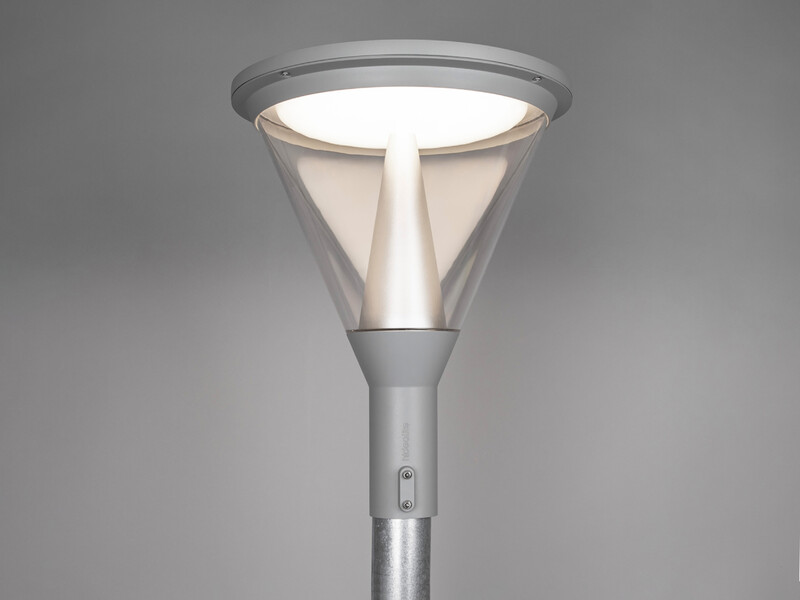

A stylish column lamp from the Pave product family. Perfectly suited for large properties or areas requiring high levels of lighting. Choose the appearance and combine different versions: Top, Deco II, and Deco IV.
The column mount fits a 60 mm column. Replaceable LED and connector. Optional color temperature. Light flux can be selected via DIP switches. 10 kV surge protection as standard.
An adapter available as an accessory enables installation on a 48 mm column. Includes a 5 m pre-installed rubber cable for easy connection.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Luminaire for streets and places (EC000062)
Mounting methodPost top
Lamp typeLED exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialAluminium
Surface protectionPowder coating
Housing colourGrey
Material coverPlastic, transparent
Voltage typeAC
Nominal voltage220-240 V
Nominal current450-1000 mA
With control gearyes
Type of control gearLED operating device current-controlled
Exchangeable control gearyes
Light distributorReflector
Product codes
SAPDAX309
STK4528837
PLC4528837
GTIN/EAN7392971147161
Manufacturer part number7749666
Vendor material number4528837
Basic information
Package measurements (L x W x H)380 x 380 x 510 mm
Package volume73.644 l
Package weight5.7 kg
Base uniteach
Package units1 / 12
Package contents–
UNSPSC39111605
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND
Documents (10)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)114.
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001044
Manufacturer
NameOEM Finland OY
Postal addressFiskarsinkatu 3, 20750 Turku
