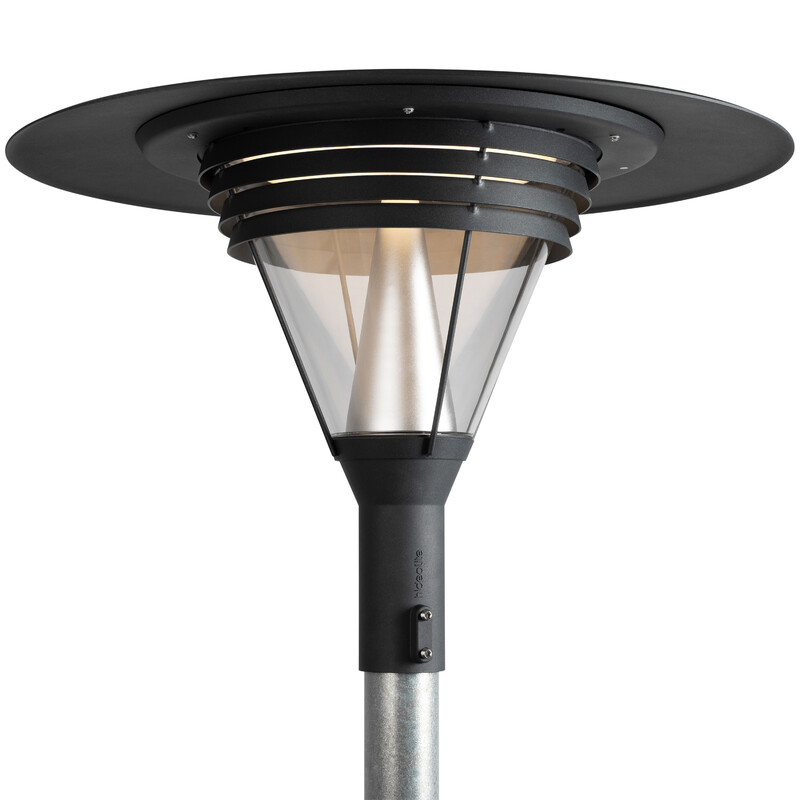

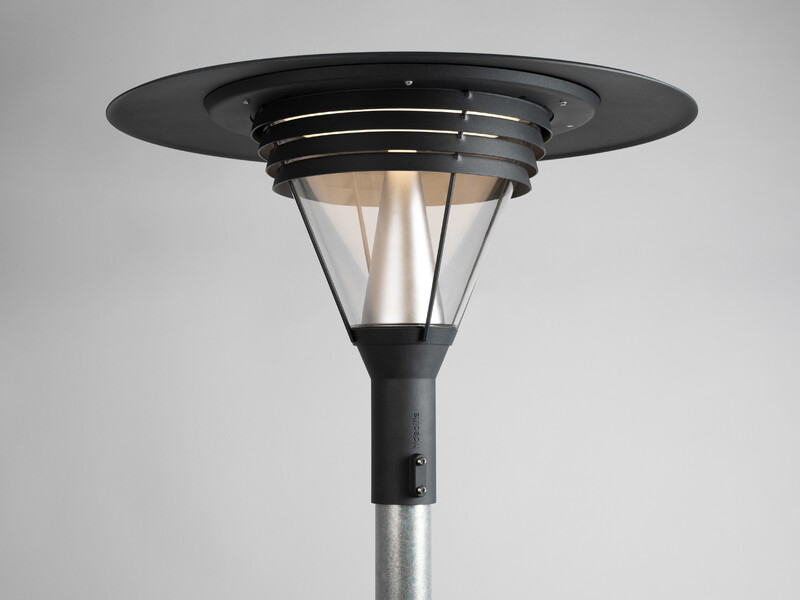

POLE MOUNT. PAVE POST TOP DECO IV IP65 IK10 1940LM 3K/4K ANT
Product code
4528848
Elegant pole lamp from the Pave product family. Perfectly suited for large properties or areas requiring high levels of lighting. Choose the appearance and combine different versions: Top, Deco II, and Deco IV. The pole mount fits a 60mm pole. Replaceable LED and driver. Optional color temperature. Light flux can be selected via DIP switches. 10kV surge protection as standard. An adapter available as an accessory enables installation on a 48mm pole. Includes 5m pre-installed rubber cable for easy connection. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Luminaire for streets and places (EC000062)
Mounting methodPost top
Lamp typeLED exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialAluminium
Surface protectionPowder coating
Housing colourAnthracite
Material coverPlastic, transparent
Voltage typeAC
Nominal voltage220-240 V
Nominal current450-1000 mA
With control gearyes
Type of control gearLED operating device current-controlled
Exchangeable control gearyes
Light distributorReflector
Product codes
SAPDAX320
STK4528848
PLC4528848
GTIN/EAN7392971147277
Manufacturer part number7749677
Vendor material number4528848
Basic information
Package measurements (L x W x H)705 x 705 x 520 mm
Package volume258.453 l
Package weight14.41 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111605
BrandHIDE-A-LITE
VendorHIDEALITE FINLAND
Documents (10)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)288.2
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001044
Manufacturer
NameOEM Finland OY
Postal addressFiskarsinkatu 3, 20750 Turku
